PMK 835-312-Z01 | Probe, passive, PHT312, temperature -55 to 155 ° C, 4 MOhm, 10: 1, 350 MHz, 400 V, 2 m, BNC readout

Manufacturer number: 835-312-Z01

835-312-Z01
835-312-Z01
Delivery time upon request

On Request

This product cannot be retrofitted!
or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries
Highlights Technical Data Documents / Downloads Description Scope Related Articles

PMK 835-312-001 | PHT312 Passive high-temperature probe -55 ° C to + 155 ° C, 4 MOhm, 10: 1, 350 MHz, 400 V, 2 m, BNC with read-out contact.

  • Bandwidth: 350 MHz (-3 dB)
  • Divider: 10: 1
  • Input capacitance: (system) <20 pF
  • Compensation range: 10 pF - 25 pF
  • Weight: 93 gr.
  • Cable length: 2 m
  • BNC connection with read-out
  • Probe tip diameter: 5 mm
  • Safety category II: 300 V rms CAT II

Technical Data

Documents & Downloads

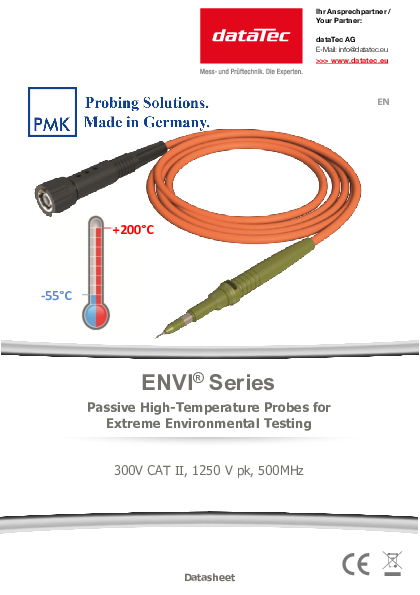

Datasheet
835-312-Z01
pdf | 0.67 MB

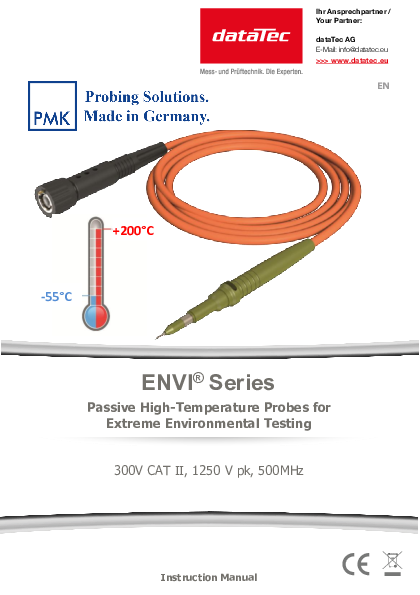

Userguide
835-312-Z01
pdf | 0.80 MB

Description

835-312-Z01 | Probe, passive, PHT312, temperature -55 to 155 ° C, 4 MOhm, 10: 1, 350 MHz, 400 V, 2 m, BNC readout

350 MHz oscilloscope miniature passive probe for climate chamber and extreme environment tests, can be used for temperature ranges from -55 ° C to + 155 ° C. Thanks to the 2m connection cable, measurements in the climate chamber or, for example, in the engine compartment can be carried out without any problems.

Lieferumfang

  • 1x probe
  • 1x 2-foot positioner
  • 1x BNC adapter 5.0-L
  • 1x fixed tip CuBe 0.8 mm
  • 1x ground blade 2.5 1
  • 1x HT dual lead adapter to 0.64mm sockets
  • 1x HT-IC Clip-M
  • 1x HT-IC Clip-L
  • 1x HT insulating tube
  • 1x HT ground cable 10 cm
  • 1x HT ground cable 10 cm to 4 mm banana plug
  • 10x solder pins 0.64 mm
  • 2x spring tip 0.8 mm
  • 1x clamp hook 5.0-HT
  • 1x trim pin T
  • 1x instruction manual

Accessoires

890-500-142
PMK
890-500-142
HT - IC Clip L 0.64 mm contact pin
Delivery time upon request
€82.50
890-400-021
PMK
890-400-021
HT - ground cable 10 cm to 4 mm banana plug for 5 mm probe
Delivery time upon request
€35.75
890-321-025
PMK
890-321-025
HT - clamp hook 5.0 for probe 5 mm
Delivery time upon request
€79.75
890-400-022
PMK
890-400-022
HT - earth lead 10 cm for probe 5 mm
Delivery time upon request
€46.75
890-500-141
PMK
890-500-141
HT - IC Clip M 0.64 mm contact pin
Delivery time upon request
€93.50
890-520-712
PMK
890-520-712
HT - Dual adapter to 0.64 mm socket for 5 mm probe
Delivery time upon request
€79.75
018-292-524
PMK
018-292-524
HT insulating cap, insulating sleeve for PHT312 ENVI probe
Delivery time upon request
€37.95

Recommendations

Oscilloscope, DSO, 2-channel, 70 MHz
Series
Series
Keysight
Oscilloscope, DSO, 2-channel, 70 MHz
DSOX2002A
Reordered - in stock. Delivery time on request
€1,952.00
Oscilloscope, MSO, 4 + 8-channel, 200 MHz
Series
Series
Keysight
Oscilloscope, MSO, 4 + 8-channel, 200 MHz
MSOX2024A
Delivery time upon request
€5,345.00
Oscilloscope, DSO, 4-channel, 200 MHz
Series
Series
Keysight
Oscilloscope, DSO, 4-channel, 200 MHz
DSOX2024A
2 in stock. Ready to ship in 1 business day
€4,230.00

About the Manufacturer

PMK
PMK

PMK Mess- und Kommunikationstechnik is a family-owned, internationally active manufacturer of high-frequency probe solutions and electrical measurement technology for current test and measurement tasks in electronic designs. The portfolio includes high-voltage and temperature-resistant probes, current transformers, and measurement accessories for power electronics, automotive, telecommunications, medical technology, and energy supply.
