PMK FF-1500A | FireFly probe, optically isolated, 1.5 GHz, >180 dB, 2 m fiber optic cable, 2 batteries, magnet lock system

Manufacturer number: FF-1500A

FF-1500A
FF-1500A
FF-1500A
FF-1500A
FF-1500A
FF-1500A
FF-1500A
FF-1500A
FF-1500A
FF-1500A
Reordered - in stock. Delivery time on request

€15,950.00

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Related Articles

PMK FF-1500A | FireFly probe, optically isolated, 1.5 GHz, >180 dB, 2 m fiber optic cable, 2 batteries, Magnet Lock System.

Documents & Downloads

Datasheet
pdf | 0.72 MB

Description

FF-1500A | FireFly probe, optically isolated, 1.5 GHz, >180 dB, 2 m fiber optic cable, 2 batteries, magnet lock system

The FireFly optically isolated high voltage probe from PMK is a leading solution for the accurate acquisition of high bandwidth differential signals at large common mode voltages. With a best-in-class bandwidth of >1.5 GHz, a wide differential input voltage range, a CMRR of up to >180 dB and a 60 kV common mode, the FireFly is the ideal measurement solution for GaN and SiC device characterization and system-level design development.

PMK's new optically isolated interface and unique compact, angled probe design are the key features that set the FireFly apart from other solutions on the market. They enable very stable and accurate measurements over a wide temperature range and easy access to measurement points in tight spaces.

The compact, angled probe design allows the use of shorter probe tip cables, resulting in measurements with higher signal fidelity and less stress on the measurement point. FireFly's wide range of probe tip connectors and accessories provide a reliable, interference-free, high-quality connection to the measurement points.

The FireFly's probe head is powered by an easily replaceable, rechargeable, industry-standard 18650 battery that provides up to 30 hours of continuous operation at room temperature. Like all PMK probes, FireFly has a universal BNC output connector and is compatible with any oscilloscope with an input impedance of 50 Ω or 1 MΩ and a 50 Ω feedthrough connector, regardless of manufacturer.

The HV probe can be controlled via the controls on the interface box or via an external interface. The "PMK Probe Control" software allows the user to control the probes remotely via a computer and provides the user with a graphical user interface. The software is free of charge and is included with the PMK PS-02 and PS-03 power supplies, which are required to power the probes.

Accessoires (17 products)

FF-2XR-MMCX
PMK
FF-2XR-MMCX
MMCX Y-cable, MMCX socket on 2x XR mini-hook
Delivery time upon request
€135.00
FF-HTS-MMCX2
PMK
FF-HTS-MMCX2
2x MMCX soldering cable adapter HT, MMCX socket with 50 Ohm RF micro coax cable, open end, -40°C to +155°C
Delivery time upon request
€120.00
FF-HTSPAD-MMCX3
PMK
FF-HTSPAD-MMCX3
3x MMCX soldering cable adapter HT, MMCX socket with 50 Ohm RF micro coax cable, flexible soldering pad, -40°C to +155°C, (1x 0Ω, 1x 36Ω, 1x 75Ω)
Delivery time upon request
€375.00
FF-MMCX-10V
PMK
FF-MMCX-10V
FireFly probe input cable ±10V, >1.3 GHz, 10x divider
Delivery time upon request
€750.00
FF-MMCX-1V
PMK
FF-MMCX-1V
FireFly probe input cable, 1x divider ±1V, >1.5 GHz, 50Ω terminated for shunt measurements
Delivery time upon request
€750.00
FF-MMCX-250V
PMK
FF-MMCX-250V
FireFly probe input cable ±250V, TBD GHz, 250x divider
Delivery time upon request
€950.00
FF-MMCX-25V
PMK
FF-MMCX-25V
FireFly probe input cable ±25V, >1.3 GHz, 25x divider
Delivery time upon request
€750.00
FF-MMCX-50V
PMK
FF-MMCX-50V
FireFly probe input cable ±50V, >1.3 GHz, 50x divider
Delivery time upon request
€750.00
FF-SQ-MMCX5
PMK
FF-SQ-MMCX5
5x MMCX Y-cable, MMCX beech to 2x 0.635mm socket suitable for square post plugs with 0.100''
Delivery time upon request
€425.00
FF-UFL-MMCX2
PMK
FF-UFL-MMCX2

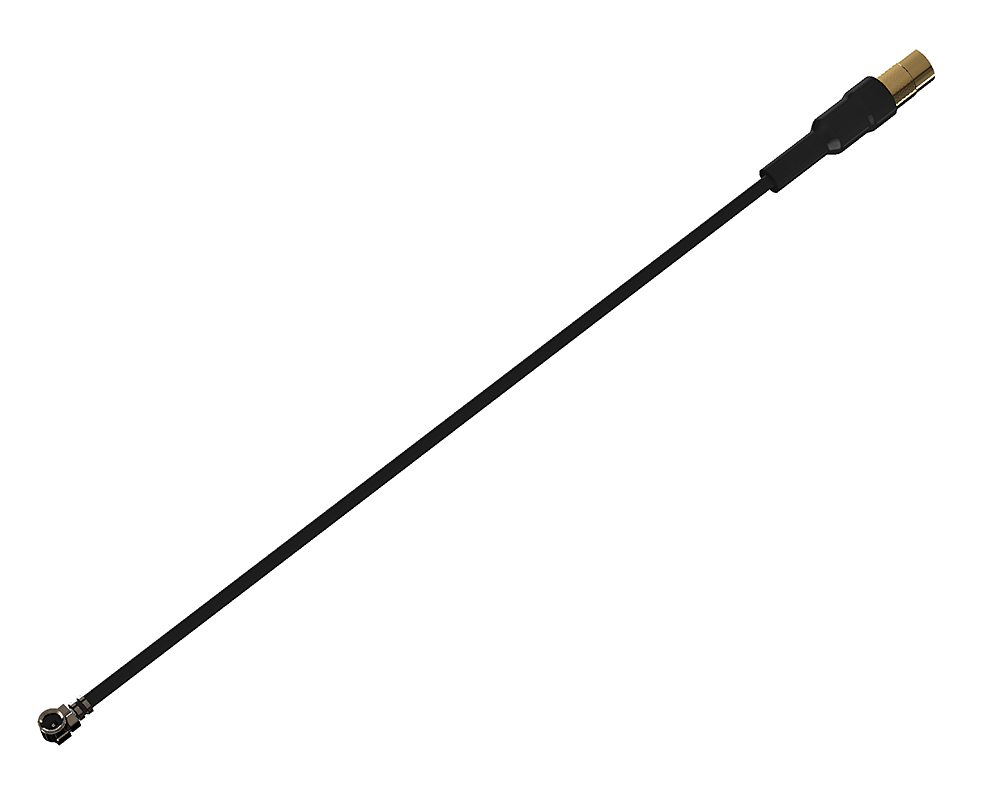

2x MMCX cable adapter, MMCX socket with 50 Ohm RF micro coax cable to U.FL plug, -40°C to +125°C
Delivery time upon request
€130.00
FF-WSQ-1000V
PMK
FF-WSQ-1000V
FireFly probe input cable, 1000x divider, for 5.08mm header connector ±1000V, TBD GHz
Delivery time upon request
€1,500.00
FF-WSQ-2500V
PMK
FF-WSQ-2500V
FireFly probe input cable, 2500x divider, for 5.08mm header connector ±2500V, TBD GHz
Delivery time upon request
€1,500.00
FF-WSQ-500V
PMK
FF-WSQ-500V
FireFly probe input cable, 500x splitter for 5.08mm header plug ±500V, TBD GHz
Delivery time upon request
€1,500.00
FF-2FOOTER-A
PMK
FF-2FOOTER-A
FireFly Tastkopfhalter 2 Fuss (Bipod), Magnet Lock System
Delivery time upon request
€99.00
FF-HAL10KV-A3
PMK
FF-HAL10KV-A3
3x Tastkopfhalter-Adapter, max. 10kV Isolation, FireFly FF-1500A
Delivery time upon request
€350.00
FF-3DPOS200A
PMK
FF-3DPOS200A
FireFly Tastkopfhalter, max 10kV, Magnet Lock System, 3D Positionierer mit Stahlsockel, 200 mm Spannweite
Delivery time upon request
€435.00
FF-POF-A01
New
New
PMK
FF-POF-A01
Power-Over-Fiber Adapter for FireFly - continuous operation without battery
Delivery time upon request
€4,750.00

Recommendations (7 products)

889-09V-PS2
PMK
889-09V-PS2
2-channel power supply PS-02 for BumbleBee and Sonic active probe, USB connection
Reordered - in stock. Delivery time on request
€825.00
889-09V-PS2-L
PMK
889-09V-PS2-L
2-channel power supply PS-02 for BumbleBee and Sonic active probe, USB and LAN
Delivery time upon request
€1,210.00
889-09V-PS3
PMK
889-09V-PS3
4-channel power supply PS-03 for BumbleBee and Sonic active probe, USB connection
1 in stock. Ready to ship in 1 business day
€1,094.50
889-09V-PS3-L
PMK
889-09V-PS3-L
4-channel power supply PS-03 for BumbleBee and Sonic active probe, USB and LAN
1 in stock. Ready to ship in 1 business day
€1,479.50
890-520-900
PMK
890-520-900
Power supply cable BumbleBee 0.5m, ISVK-PP
Delivery time upon request
€165.00
890-520-915
PMK
890-520-915
Power supply cable BumbleBee 1.5m, ISVK-PP-1.5M
Delivery time upon request
€192.50
D010031
PMK
D010031

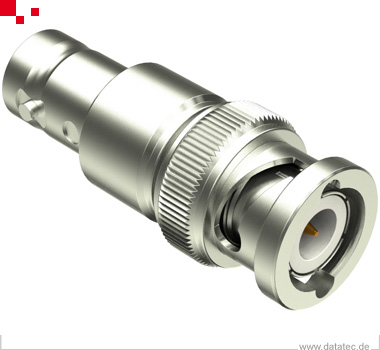

Termination, BNC (m), DC - 3GHz, 0.5W T1301
Delivery time upon request
€47.50

About the Manufacturer

PMK
PMK
PMK is the specialist in the development and manufacture of probes for broadband measuring instruments. PMK's solutions are continuously improved and adapted to the changing needs and requirements of everyday measurement.
