NI 790065-01 | FD-11601 Voltage input device, 8 channels, ±10 V, sensor-powered, 102.4 kS/s per channel, 24 bit

Manufacturer number: 790065-01

790065-01
790065-01
790065-01
790065-01
790065-01
790065-01
Delivery time upon request

€4,310.00

or choose one of the following options:
Request a quote Product is already in cart
Product inquiries Share
Highlights Description Related Articles

NI 790065-01 | FD-11601 Voltage input device, 8 channels, ±10 V, sensor-powered, 102.4 kS/s per channel, 24 bits.

Product features:

  • Number of channels: 8
  • Input type: ±10 V analog signals with sensor power supply
  • Sensor power supply: 5–24 V, 600 mW per channel
  • <resolution: 24 bit
  • Sampling rate (simultaneous): up to 102.4 kS/s per channel
  • Input connectors: 5-pin A-coded M12 connectors
  • Isolation: channel-to-channel, 60 VDC continuous / 1.000 VRMS transient
  • Filtering: anti-alias, Butterworth, combination filtering
  • Operating temperature: -40 °C to +85 °C
  • Protection class: IP65/IP67 (dustproof and waterproof)
  • Design: fanless, shockß- and vibration-resistant (100 g/10 grms)

Description

790065-01 | FD-11601 Voltage input device, 8 channels, ±10 V, sensor-powered, 102.4 kS/s per channel, 24 bit

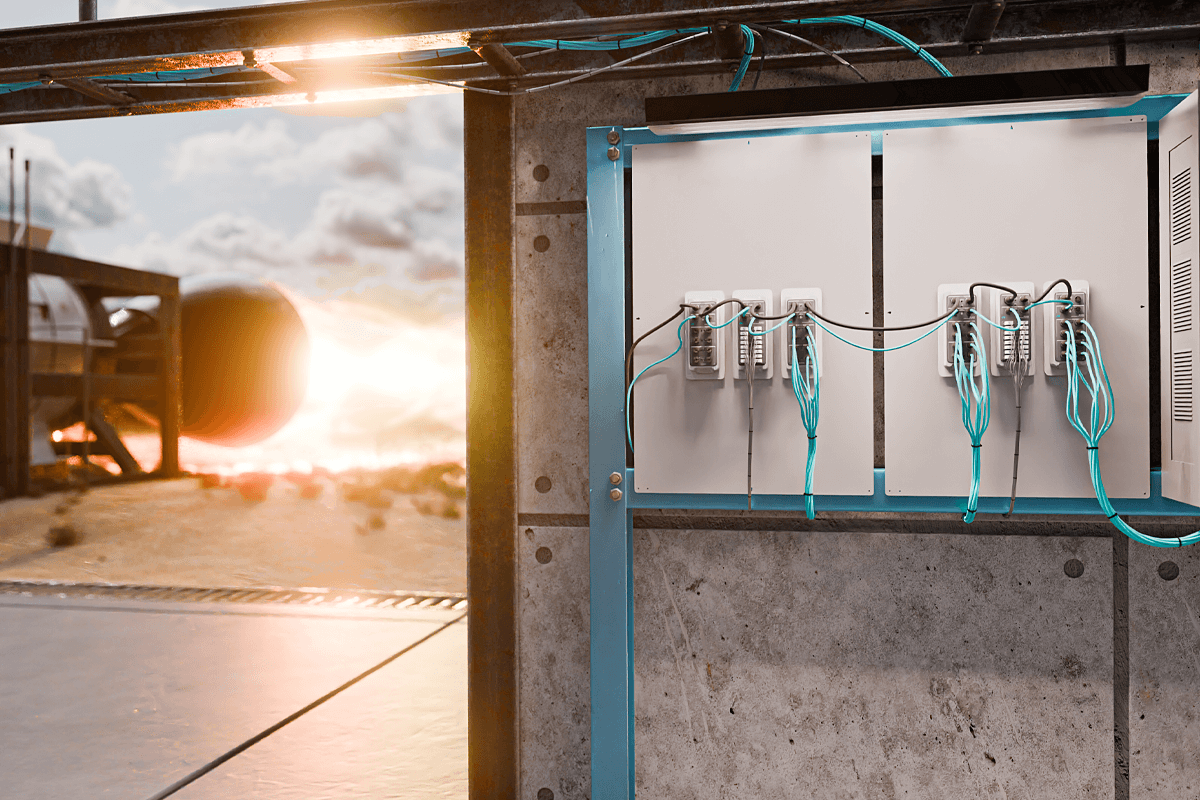

The NI FieldDAQ series comprises high-performance data acquisition systems (DAQ) that have been specially developed for extreme environmental conditions. These devices enable precise measurements directly at the sensor source, even under extreme temperatures, vibrations or humidity. Thanks to the protection classes IP65/IP67 and their robust design, they are ideally suited for outdoor use and harsh conditions.

Typical areas of application include:

  • Environmental and structural tests
  • HALT tests (Highly Accelerated Life Test)
  • NVH analyses (Noise, Vibration, Harshness)
  • Tests of rocket engines and flight structures
  • Field tests on off-road vehicles
  • Academic research (e.g. wind tunnel and climate tests). Academic research (e.g. wind tunnel and climate chamber measurements)

With support for different sensor types (voltage, temperature, IEPE, strain measurement) and compatibility with NI FlexLogger™, LabVIEW, Python and C/C++, FieldDAQ offers a flexible and powerful solution for modern measurement systems.

Features and differences:

The FD-11601 variant is a versatile voltage input module with integrated sensor power supply. It offers 8 channels for analog ±10 V signals and is ideal for structural mechanical tests or general measurement tasks with sensor power supply.

Differences to other variants:

  • FD-11614: Specially for thermocouples (type J, K, T, E, N, B, R, S) with 16 channels
  • FD-11634: For IEPE sensors such as microphones and acceleration sensors
  • FD-11637: For strain gauges (quarter, half and full bridge)

Alternate products (3 products)

Alternate products (3 products)

790064-01
New
New
NI
790064-01
FD-11614 Temperature measuring device, 16 channel universal thermocouple input, MiniTC, 24 bit
Delivery time upon request
€4,310.00
790066-01
New
New
NI
790066-01
FD-11634 Sound and vibration meter, 8 channels, IEPE, 102.4 kS/s per channel, 24 bit
Delivery time upon request
€4,470.00
785641-01
New
New
NI
785641-01
FD-11637 Strain and bridge measuring device, 8 channel, 102.4 kS/s per channel, 24 bit
Delivery time upon request
€3,720.00

About the Manufacturer

NI
NI
National Instruments is a global leader in test, measurement, and control solutions. NI's platform-based approach combines modular hardware and software to help customers address complex engineering challenges. Applications range from automotive, electronics, and energy to research/education and industrial systems.
