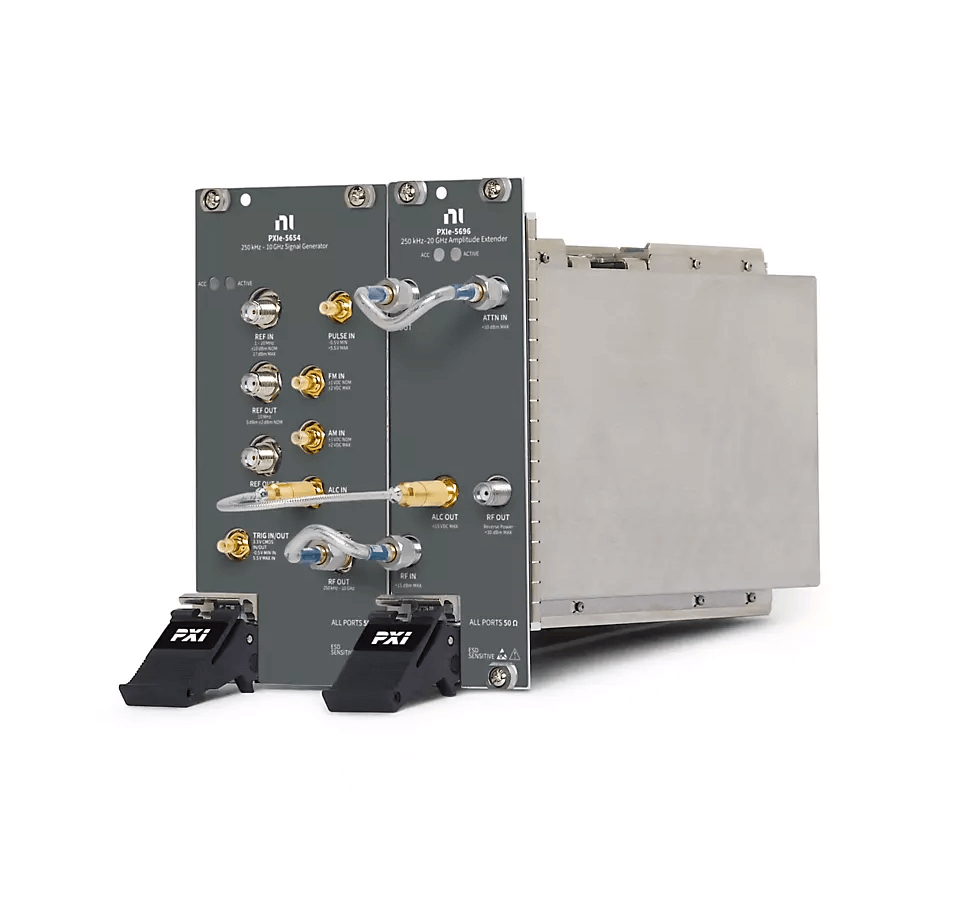

NI 784776-01 | PXIe-5654, 10 GHz signal generator with amplifier extender

Manufacturer number: 784776-01

784776-01
784776-01
Delivery time upon request

€44,300.00

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description

784776-01 | PXIe-5654, 10 GHz signal generator with amplifier extender.

Technical Data

Documents & Downloads

Catalog
PXI-Product-Catalog
pdf | 5.05 MB
Overview
PXI-Overview
pdf | 2.34 MB
Datasheet
PXIe-5654
pdf | 0.27 MB
Configuration guide
PXI-Overview
pdf | 1.88 MB

Description

784776-01 | PXIe-5654, 10 GHz signal generator with amplifier extender

The PXIe-5654 module offers a combination of low phase noise and short frequency adjustment times. This makes the module suitable for applications such as receiver blocking testing and desensitization, high performance intermodulation distortion measurements, and various security and defense applications. The PXIe-5654 module meets the demanding requirements for RFIC characterization, satellite tests and radar applications. Some PXIe-5654 options include a PXIe-5696 amplitude amplifier module. The PXIe-5696 supports a frequency range from 250 kHz to 20 GHz and an extended amplitude range of up to 27 dBm.

Product features:

  • Bus type: PXIe
  • Maximum output power: 27 dBm
  • Frequency range RF generator: 250 kHz to 10 GHz
  • Typical tuning time of the analyzer: 1 ms
  • Module width: 5
