Gossen Metrawatt M694A | Seculife ST BASE IQ device tester PE test current 10AVDE0701-0702/0751/0544-4 test device, USB

Name: M694A | Seculife ST BASE IQ device tester PE test current 10AVDE0701-0702/0751/0544-4 test device, USB
Brand: Gossen Metrawatt
SKU: M694A
Price: 3540.0 EUR
Availability: InStock

Manufacturer number: M694A

Delivery time upon request

€3,540.00

or choose one of the following options:

Request a quote Product inquiries Request education-price

Gossen Metrawatt M694A | Seculife ST BASE IQ device tester PE test current 10AVDE0701-0702/0751/0544-4 test device, USB

Technical Data

Article number:	M694A
Automatic test sequence:	Yes
DIN VDE0544-4 / IEC 60974-4:	Yes
DIN VDE 0701-0702:	Yes
DIN VDE 0751 / IEC62353:	Yes
Differential power:	0,2 - 30,0 mA
Dimensions (L x W x H) (mm):	295 x 145 x 150
EN 50678 (prepared):	Optional
EN 50699 (prepared):	Optional
Earth conductor 10A:	Yes
Earth conductor 25A:	No
High voltage test DC:	No
Interfaces:	USB
Isolation:	0 - 300 MΩ
Measured value memory:	50000
Mobile:	Yes
Model:	Seculife ST BASE
Protective earth less than 200mA:	Yes
Software included:	IZYTRONIQ
Stationary:	No
Touch Display:	Yes
Weight (kg):	2.5

Description

M694A | Seculife ST BASE IQ device tester PE test current 10AVDE0701-0702/0751/0544-4 test device, USB

The Gossen Metrawatt SECULIFE ST BASE IQ offers all measurement and test functions for testing the effectiveness of the protective measures for electrical devices, medical devices and welding devices - both with predefined and with programmable test sequences that correspond to the test standards VDE 0701-0702, IEC/EN 62353 ( VDE 0751) and IEC/EN 60974-4 (VDE 0544-4) are necessary.

The new, even more optimized measuring cycles ensure even more measurements per day. And it is so easy to use that tests can be carried out without any special knowledge.

Product features:

preconfigured and self-programmable test sequences for quick testing of electrical devices
Extensive data management and storage concept for automatic test sequences and individual measurements for up to 50,000 data sets
High-resolution and brilliant 4.3" TFT color display
Create test sequences yourself using the IZYTRONIQ

Accessoires (2 products)

Gossen Metrawatt
Z745X

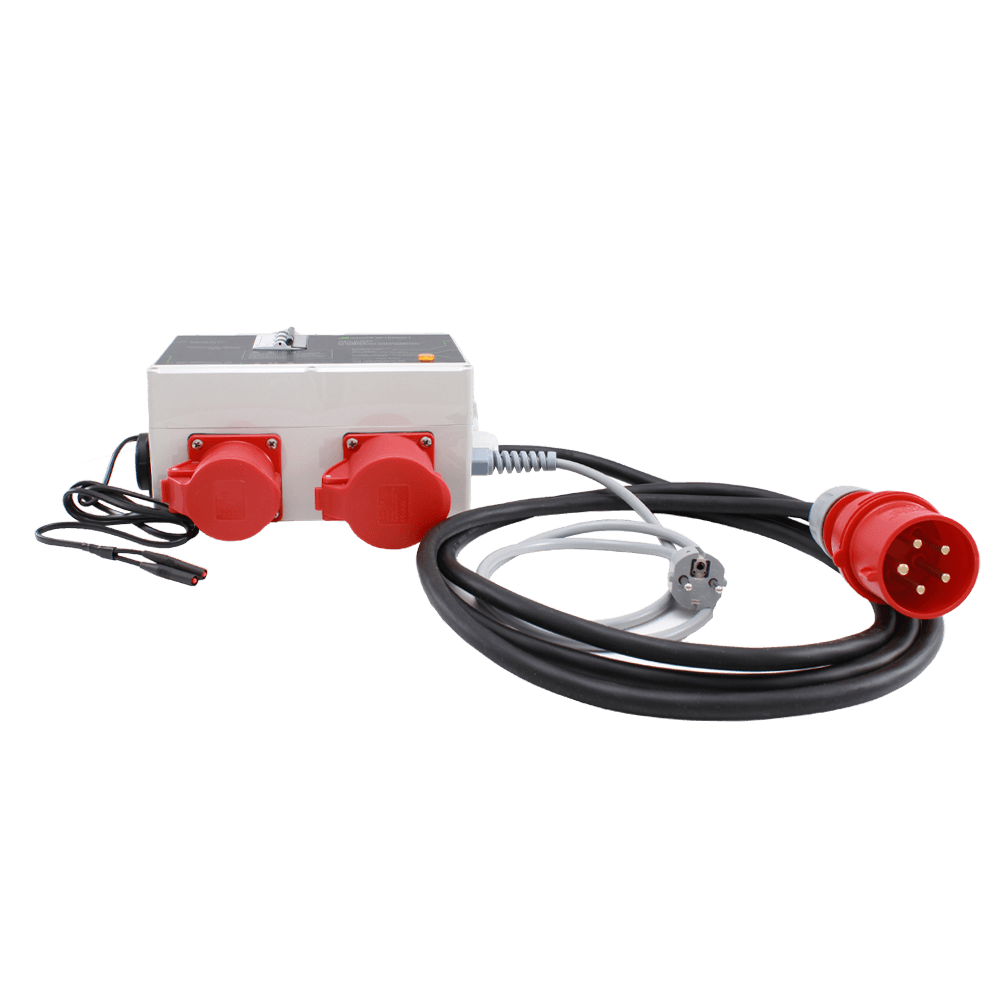

AT3-IIS32, Secutest test adapter, CEE devices active, 32A loadable

Ready to ship in 5 to 10 business days

€2,575.00

Gossen Metrawatt
Z710H

Protective cover for SECUTEST / SECULIFE test device VDE

Ready to ship in 5 to 10 business days

€155.00

Alternate products (2 products)

Gossen Metrawatt
M694B

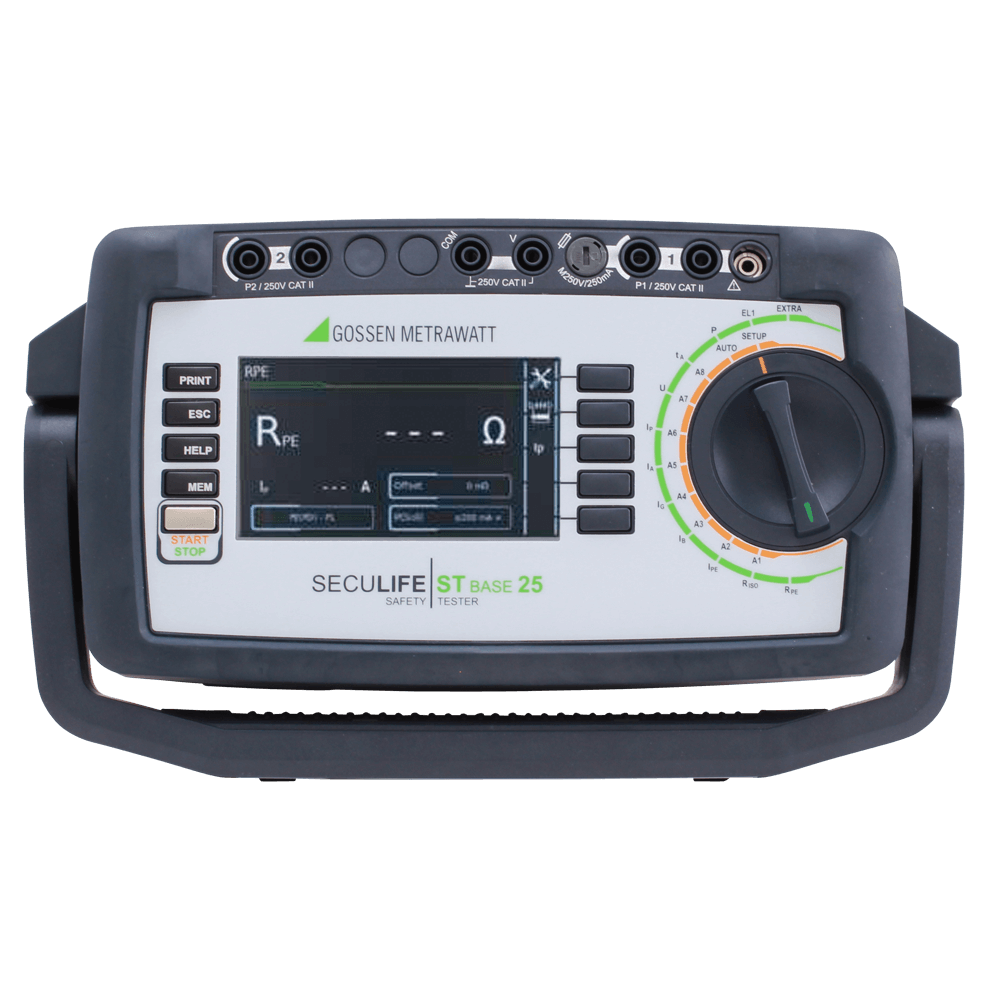

Seculife ST BASE 25 appliance tester for numerous VDE standards with antibacterial tester tray

Delivery time upon request

€3,770.00

Gossen Metrawatt
M694C

Seculife ST PRO IQ appliance tester VDE 0701-0702 / 0751 / 0544-4 & IZYTRONIQ BUSINESS starter

Delivery time upon request

€4,600.00

About the Manufacturer

Gossen Metrawatt

Safety through competence. With over 100 years of experience, Gossen Metrawatt offers you unique products for measurement and testing technology as well as industrial metrology. The products stand for quality, reliability, safety and progressiveness, but also for dynamic and ergonomic design, high ease of use and unique innovative spirit.
