FLUKE 301D | Compact AC/DC Current Clamp Meter, 4 Digits, 600 A AC/DC, 600 V AC/DC, CAT III 300V

Name: 301D | Compact AC/DC Current Clamp Meter, 4 Digits, 600 A AC/DC, 600 V AC/DC, CAT III 300V
Brand: FLUKE
SKU: FLUKE-301D/EUR
Price: 149.0 EUR
Availability: InStock

Manufacturer number: FLUKE-301D/EUR

40 in stock. Ready to ship in 1 business day

€149.00

or choose one of the following options:

Request a quote Product inquiries Request education-price

Fluke 301D | Compact AC/DC clamp meter / current clamp multimeter, 4 digits, 600 A AC/DC, 600 V AC/DC, CAT III 300V.

Technical Data

Model:	FLUKE-301D/EUR

Documents & Downloads

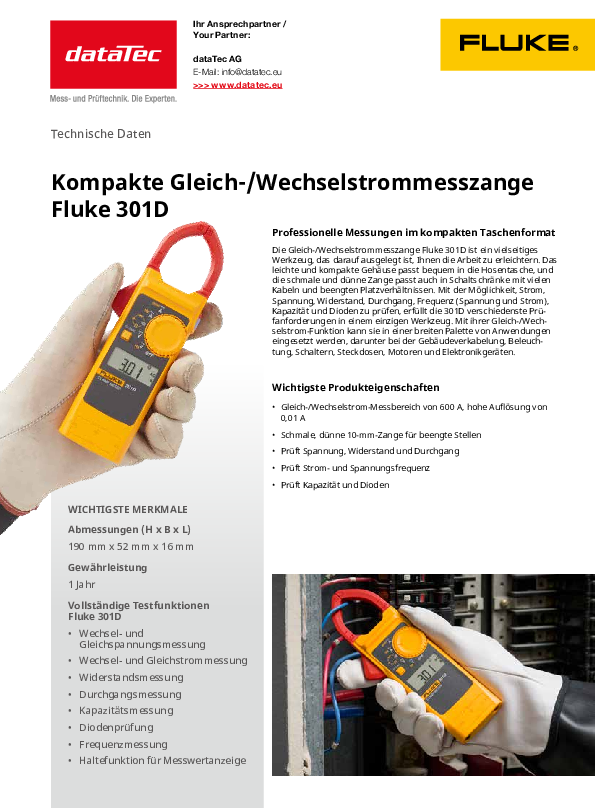

Datasheet

pdf | 0.31 MB

Description

301D | Compact AC/DC Current Clamp Meter, 4 Digits, 600 A AC/DC, 600 V AC/DC, CAT III 300V

The compact Fluke 301D DC/AC clamp meter is a handy measuring tool for electricians, service technicians and ambitious users who need reliable measurements in confined spaces. Thanks to the slim housing with a depth of just 16 mm and a weight of only 154 g, the device can be carried comfortably in a trouser pocket or tool bag.

The slim clamp with an arm thickness of just 10 mm and a clamp opening of 34 mm enables precise current measurements even in densely populated switch cabinets or cable bundles. Thanks to the functions for AC and DC current, voltage, resistance, continuity, frequency, capacitance and diode test, the measuring clamp covers a wide range of applications - from building wiring, lighting systems, switches and sockets to motors and electronic devices.

The Fluke 301D model offers a measuring range of up to 600 A AC/DC and is therefore ideal for typical installation and maintenance tasks in domestic, commercial and industrial applications. With a high resolution of 0.01 A in the 60 A range, even smaller currents can be reliably measured.

Voltage measurements of up to 600.0 V AC and DC are available. The clamp meter also tests resistance (up to 60.00 kΩ), continuity, the frequency of voltage and current, capacitance and diodes. An easy-to-read LCD with 6,000 counts, data hold function and backlighting ensures convenient operation even in poor lighting conditions.

The Fluke 301D complies with safety category CAT III 300 V and is therefore suitable for measurements in building installations and distribution boards. The automatic switch-off after approx. 20 minutes protects the batteries and increases the operating time.

Product features:

Measurement type: Compact direct/alternating current clamp meter for AC and DC current
Current measurement range AC (45 to 400 Hz): 60.00 A / 600.0 A, resolution 0.01 A / 0.1 A
DC current measuring range: 60.00 A / 600.0 A, resolution 0.01 A / 0.1 A
Voltage measuring range AC (45 to 400 Hz): up to 600.0 V, resolution 0.1 V
Voltage measuring range DC: Up to 600.0 V, resolution 0.1 V
Resistance measurement: 600.0 Ω / 6.000 kΩ / 60.00 kΩ
Voltage frequency: 9.999 Hz / 99.99 Hz / 999.9 Hz / 9.999 kHz / 99.99 kHz
Current frequency: 45.0 to 400.0 Hz
Capacitance measurement: 9.999 µF as well as 99.99 µF to 999.9 µF
Diode test: up to 3,000 V
Continuity test with acoustic signal
Display: LCD with 6.000 counts and approx. 3 updates per second
Backlight for safe working in poorly lit environments
Data hold function
Safety category: CAT III 300 V according to IEC 61010-1 and IEC 61010-2-032
Protection class: IP30
Dimensions (H x W x D): 190 mm x 52 mm x 16 mm
Weight: approx. 154 g
Plier opening: 34 mm, plier arm size: 10 mm x 10 mm
Power supply: 2 x AAA batteries (IEC LR03), typical operating time at least 500 hours
Automatic switch-off after approx. 20 minutes to conserve battery life
Operating temperature: -10 °C to 50 °C, storage temperature: -30 °C to 60 °C
Permissible relative humidity (operating): up to 90 % RH at 10 °C to 30 °C, decreasing to 45 % RH at 40 °C to 50 °C
Permissible operating altitude: up to 2,000 m above sea level (operating)

Lieferumfang

Fluke 301D AC/DC current clamp meter
2 x AAA batteries (IEC LR03)
Operator's manual / quick start guide

About the Manufacturer

FLUKE

Since its founding in 1948, Fluke has provided professional tools and measurement equipment for the installation, maintenance and service of electronic equipment in industry, power, medical, building services and electrical installations, as well as in precision measurement and quality assurance.
