FLUKE 107 | Compact hand-held multimeter, 600 V AC/DC, 10 A AC/DC, CAT III 600V

Manufacturer number: FLUKE-107/EUR

107
107
107
107
107
107
107
107
40 in stock. Ready to ship in 1 business day

€149.00

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Scope Related Articles

Fluke 107 | Compact hand-held digital multimeter, 600 V AC/DC, 10 A AC/DC, CAT III 600V.

Technical Data

Documents & Downloads

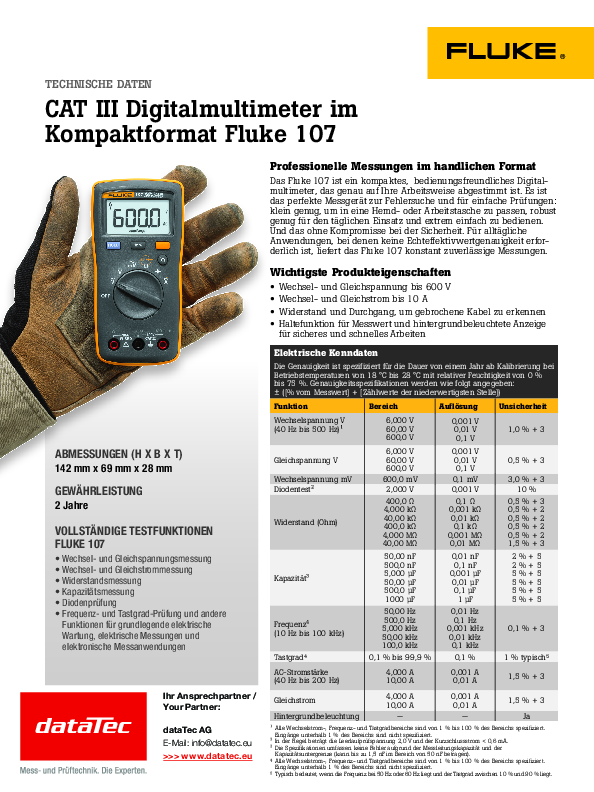

Datasheet
pdf | 1.67 MB

Description

107 | Compact hand-held multimeter, 600 V AC/DC, 10 A AC/DC, CAT III 600V

The Fluke 107 is a compact, handy digital multimeter (DMM) for quick troubleshooting and everyday measurement tasks in the workshop, service and training. Thanks to its low weight and robust design, it is ideal for mobile use, on construction sites or in control cabinets - wherever reliable basic measurement functions are required.

The device covers all typical standard electrical measurements: AC and DC voltage, AC and DC current, resistance, continuity test, diode test, capacitance, frequency and duty cycle. The illuminated display ensures that measured values are easy to read even in poorly lit environments. Thanks to its compact design, the multimeter fits comfortably in a tool bag or even a shirt pocket and can withstand drops from a height of up to 1 m.

Typical areas of application include installation and maintenance work on electrical systems, testing household and industrial appliances, air conditioning systems, small machines or electronic components. Wherever safe, fast and solid measurement results are required, the Fluke 107 is a practical solution.

The Fluke 107 was specially developed for users who need an easy-to-use pocket-sized multimeter. The large rotary switch allows quick access to all measurement functions, while a hold button freezes measured values for convenient reading or documentation. The CAT III 600 V safety specification enables measurements in typical distribution boards and sub-distribution boards without compromising safety.

Weighing only around 200 g and with an ergonomic rubber housing, the Fluke 107 fits securely in the hand. The intelligent SmartStrap multi-purpose carrying strap allows the device to be attached to ferromagnetic surfaces or set up at an optimum angle - ideal when both hands are needed for the test leads.

Product features:

  • Compact digital multimeter for mobile use
  • Safety specification: CAT III 600 V according to IEC 61010-1
  • Measurement functions: AC/DC voltage, AC/DC current, resistance, continuity, diode test, capacitance, frequency, duty cycle
  • Voltage measurement: up to 600.0 V AC/DC
  • Current measurement: up to 10.00 A AC/DC
  • Resistance measurement: up to 40.00 MΩ
  • Capacitance measurement: 50.00 nF to 1000 µF
  • Frequency measurement: 10 Hz to 100 kHz
  • Duty cycle measurement: 1% to 99%
  • Display: 6000 counts LCD, approximately three updates per second
  • Hold function and backlight for easy readability
  • Input impedance: typ. > 10 MΩ for voltage measurement
  • Current inputs protected by 11 A/1000 V fast-blow fuse
  • Protection class: IP40
  • Operating temperature: 0 °C to 40 °C
  • Storage temperature: -30 °C to 60 °C
  • Relative humidity: up to 90 % (10-30 °C), up to 75 % (30-40 °C)
  • Maximum working height: 2000 m
  • Dimensions: approx. 142 mm x 69 mm x 28 mm
  • Weight: 200 g
  • 2 x AAA batteries, typical runtime at least 200 hours

Lieferumfang

  • Fluke 107 compact digital multimeter
  • TL75 Hard Point test lead set (1 pair of test leads, approx. 1.22 m, with right-angled shielded banana plugs)
  • 2 x AAA batteries
  • SmartStrap intelligent magnetic multi-purpose carrying strap
