Chauvin Arnoux P01157180 | L411 Current data logger with integrated MiniFlex, 1 channel, 0.5 to 3000 A AC

Name: P01157180 | L411 Current data logger with integrated MiniFlex, 1 channel, 0.5 to 3000 A AC
Brand: Chauvin Arnoux
SKU: P01157180
Price: 599.0 EUR
Availability: InStock

Manufacturer number: P01157180

Delivery time upon request

€599.00

or choose one of the following options:

Request a quote Product inquiries

Chauvin Arnoux P01157180 | L411 Current data logger with integrated MiniFlex, 1 channel, 0.5 to 3000 A AC.

Product features:

Measurement channels: 1
Measurement range: 0.5 A to 3000 A AC (integrated MiniFlex converter)
Frequency measurement: Yes
Display: LCD with backlight
Memory size: 8 GB
Sampling rate: 1 measurement per second
Aggregation time: 1 to 60 minutes
Communication: USB, WiFi, web server, IRD server (DataView Synch)
Power supply: 3 × AA batteries or USB
Battery operation: up to 3 days without Wi-Fi
Dimensions: 147 × 34 × 72 mm
Weight: approx. 340 g
Current transformer: Ø 100 mm / 350 mm, cable length 1.2 m
Operating temperature: -20 °C to +50 °C
Protection class: IP 54
Safety category: CAT IV 600 V / CAT III 1000 V

Technical Data

Current measuring range:	0.5 - 3000 AAC
Dimensions (L x W x H) (mm):	147 x 72 x 34
Display:	Yes
Interfaces:	USB, WLAN, WiFi, web server
Max. battery life:	72 hours
Measured value memory:	8GB
Measurements per second:	1
Number of channels:	1

Documents & Downloads

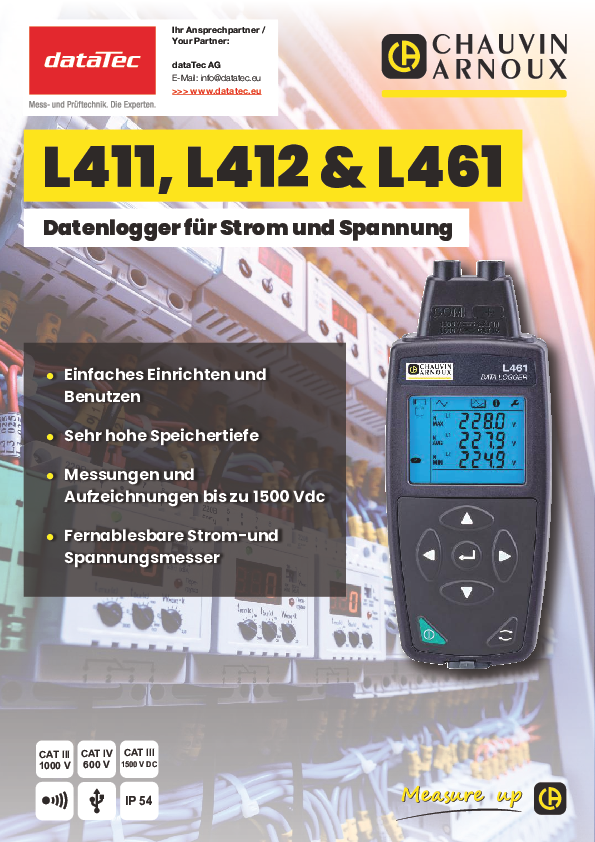

Datasheet

pdf | 0.64 MB

Description

P01157180 | L411 Current data logger with integrated MiniFlex, 1 channel, 0.5 to 3000 A AC

The Chauvin Arnoux L411 is a compact and cost-effective current data logger with integrated MiniFlex converter. It is ideal for recording, monitoring and analyzing electrical currents in industrial applications and energy systems. Thanks to its automatic time stamping, fluctuations and anomalies in the measured signal can be easily detected and documented.

The device impresses with its very high memory depth and easy setup via USB, WLAN or the integrated web server. The measurement data can be displayed in real time and analyzed using the DataView software or exported as an Excel file.

Possible applications:

Monitoring of current flows in lines, feeders or circuits
Detection of intermittent problems and current peaks
Dimensioning or recalibration of current transformers
Ideal for measurements in photovoltaic systems and electrical distribution systems
Remote monitoring thanks to integrated WLAN and web server function

Alternate products

New

Chauvin Arnoux
P01157181

L412 Current data logger with 2 AC measuring channels for single-phase and two-phase electrical distribution systems

Delivery time upon request

€539.00

New

Chauvin Arnoux
P01157182

L461 Voltage data logger AC and DC, 1 channel, voltage: up to 1000 VAC or 1500 VDC

Delivery time upon request

€579.00

About the Manufacturer

Chauvin Arnoux

Chauvin Arnoux stands for highest quality and innovative, highly reliable test equipment in the fields of electrical safety testing, measurement of electrical quantities, power measurement, energy and fault analysis.
