Chauvin Arnoux P01120005A | Y4N current clamp, 4 mm, 600 A 48 Hz - 1 kHz, U-Out

Manufacturer number: P01120005A

P01120005A
Delivery time upon request

€357.00

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description

Clamp current transformer Y4N with high accuracy ≤ 1% from Chauvin Arnoux.

  • Operating frequency 48Hz - 1kHz
  • Measuring range 4 .. 600A AC
  • Output with surge protection
  • Gear ratio 1000/1
  • Accuracy ≤ 1%
  • Conversion ratio (input / output): 500 A / 0.5 V
  • Output: 0.5 V DC
  • Cable length 2 m
  • Connection 4 mm safety plug
  • Surge protection: CATIII 600V / CATIV 300V
  • Dimensions: H195 x W66 x D34 mm
  • Weight: 420 gr

Technical Data

Documents & Downloads

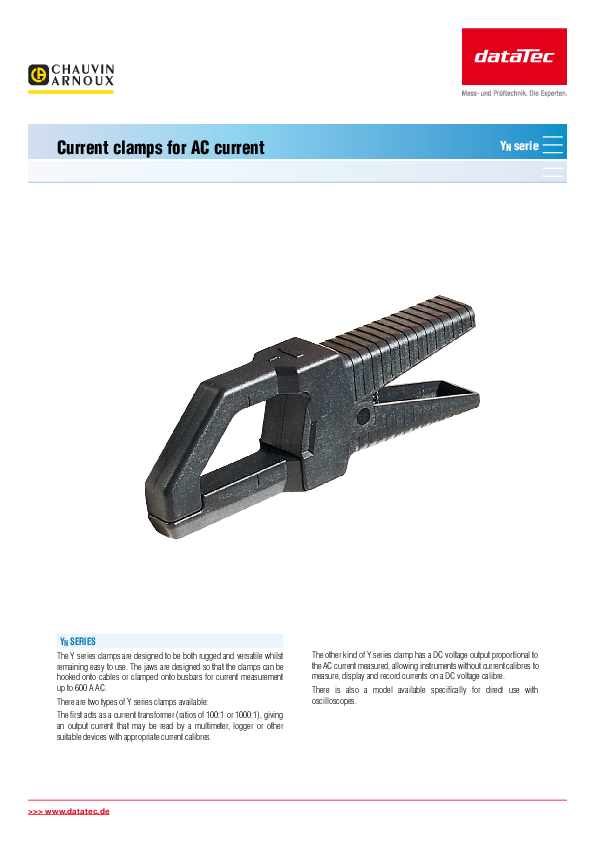

Datasheet
P01120001A
pdf | 0.63 MB

Description

P01120005A | Y4N current clamp, 4 mm, 600 A 48 Hz - 1 kHz, U-Out

These clamps are especially suitable for weak to medium AC currents up to 600 A. With the hook-shaped jaw, individual cables or small busbars can be gripped particularly well. The clamps Y4 has a current output for multimeters, recorders, etc. with AC current measurement input.

About the Manufacturer

Chauvin Arnoux
Chauvin Arnoux

Chauvin Arnoux is a leading manufacturer of portable test and measurement instruments for electrical and physical quantities and has a company history dating back to 1893. The portfolio includes power and energy recorders, power and energy analyzers, multimeters, multimeter clamps, installation testers, and handheld oscilloscopes for applications in electrical engineering, electronics, industry, and the public sector.
