B&K Precision BA6011 | High-Precision Battery Analyzer, 300 V, 1 mV, BA6010 Series

Manufacturer number: BA6011

BA6011
BA6011
BA6011
Series
1 in stock. Ready to ship in 1 business day

€1,640.00

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

B&K Precision BA6011 | High-precision battery analyzer, 300 V, 1 mV, BA6010 series.

Technical Data

Documents & Downloads

Datasheet
BA6010
pdf | 2.14 MB

Description

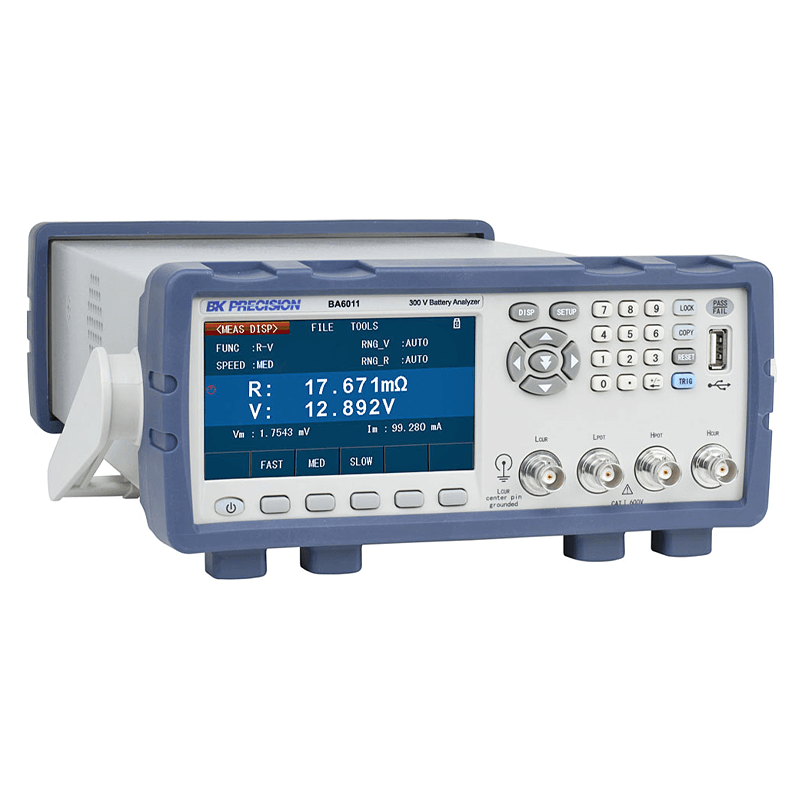

BA6011 | High-Precision Battery Analyzer, 300 V, 1 mV, BA6010 Series

The BA6011 from B&K Precision is a high-precision battery analyzer designed specifically for measuring voltage and resistance in modern battery systems. It offers high accuracy, speed and a variety of measurement functions that make it particularly suitable for testing high-voltage battery packs in industrial and automotive applications.

The BA6011 battery analyzer has a voltage measurement range up to 300 V and is therefore ideal for battery packs with multiple cells. It has a voltage resolution of 1 mV.

The BA6010 is suitable for single-cell measurements. It has a voltage measurement range of up to 60 V and offers a voltage resolution of 100 µV.

Product features:

  • Measurement parameters: In addition to voltage and resistance, inductance, dissipation factor, impedance, quality factor, reactance, phase angle and capacitance can also be measured.
  • Voltage range: Up to 300 V, ideal for testing battery packs with multiple cells.
  • Resolution: Highest precision with a basic accuracy of 0.05 % and a voltage resolution of 1 mV.
  • Measurement speed: Up to 50 measurements per second for maximum efficiency in production environments.
  • 4-wire Kelvin technology: Ensures precise resistance measurements by minimizing lead resistance.
  • Large colour display: 4.3-inch LCD for clear display of measured values.
  • Versatile interfaces: RS232, USB (USBTMC and virtual COM) and a handler interface for automation.
  • Bin comparator: 9 bins for classifying measured values with statistical evaluation.
  • Trace function: Graphical display of measured values over a specific period of time with cursor measurements.
  • Automatic fault detection: Detects open test leads and contact faults for reliable measurements.

Application areas:

  • Research & development: Analysis of battery technologies with higher voltages, e.g. for electric vehicles.
  • Production testing: Efficient quality control for high-voltage battery systems.
  • Automated test systems: Integration into production lines through comprehensive interfaces.
  • Industry & Automotive: Testing of batteries in electric drives and hybrid vehicles.
  • Energy storage & emergency power systems: Evaluation of high-performance battery systems.
  • Electronics workshops: Diagnosis and maintenance of batteries in industrial applications.

Alternate products

Alternate products

BA6010
Series
Series
B&K Precision
BA6010
High-Precision Battery Analyzer, 60 V, 100 µV, BA6010 Series
Delivery time upon request
€1,460.00

About the Manufacturer

B&K Precision
B&K Precision

B&K Precision is a renowned manufacturer of electronic test and measurement instruments with more than 75 years of experience, developing precise solutions for research, industry, education, and development. The broad portfolio includes oscilloscopes, DC power supplies, electronic DC loads, digital multimeters, LCR meters, function generators, spectrum analyzers, and frequency counters.
