PXI Modules

NI (National Instruments) PXI modules interface to bus standards and can be used to acquire data and images, trigger and synchronize measurement devices, generate and route signals, control motion, and perform a variety of measurements.

Filter products
357 products
785068-01
NI
785068-01
LVDT module NI PXIe-4340, AC, +/- 7 Veff, 4 channels, 24 bit
  • Max. Number of differential analogue input channels: 0
  • With case: Yes
CHF 4,110.00
Delivery time upon request
782953-01
NI
782953-01
PXIe-7971R FlexRIO FPGA Module (Kintex-7 K325T)
  • With case: Yes
CHF 12,700.00
Reordered - in stock. Delivery time on request
780992-02
NI
780992-02
NI PXIe-6544, (100 MHz, 32 digital I / O channels, 1.2, 1.5, 1.8, 2.5, 3.3 V, 8 Mbit per channel)
  • With case: Yes
  • Number of bidirectional digital channels: 32
  • Logic level and range: 3.3 V, 1.5 V, 1.2 V, 2.5 V, 1.8 V
  • Logic level of the digital I/O: 3.3 V, 1.5 V, 1.2 V, 2.5 V, 1.8 V
CHF 12,800.00
Delivery time upon request
781345-01
NI
781345-01
PXIe-4331, bridge analog input module with 8 channels, 102.4 kS / s
  • With case: Yes
  • Measurements per second/sampling rate (MS/s): 0.1024
  • Max. Number of differential analogue input channels: 8
  • Samplerate: 102.4 kS/s
  • Voltage measuring range of the analogue input (V): -100 mV/V to 100 mV/V, -25 mV/V to 25 mV/V
CHF 9,170.00
Delivery time upon request
782383-01
NI
782383-01
PXI-2532B, PXI matrix switch with 512 crosspoints, reed relay (0.5 A, 100 V)
  • With case: Yes
  • Relaistyp: Reed
CHF 12,100.00
Delivery time upon request
785596-01
NI
785596-01
FlexRIO signal generator PXIe-5745 with 2 channels (6.4 GS / s), 12 bit, KU035
  • With case: Yes
  • Max. Update rate (MS/s): 6400
  • Number of analogue output channels: 2
  • Number of channels: 2
  • Samplerate: 6.4 GS/s
  • Measurements per second/sampling rate (MS/s): 6400
CHF 24,700.00
Delivery time upon request
782621-11
NI
782621-11
PXIe-5160 PXI Oscilloscope with CableSense Technology, 500 MHz, 10 bits, 2.5 GS/s, 2 channels
  • With case: Yes
  • Number of channels: 2
  • Measurements per second/sampling rate (MS/s): 2500
  • Samplerate: 2.5 GS/s
  • Voltage measuring range of the analogue input (V): -25 V to 25 V
  • Bandwidth (MHz): 500
CHF 19,600.00
Delivery time upon request
782118-01
NI
782118-01
NI PXIe-4357, RTD input module
  • With case: Yes
  • Max. Number of differential analogue input channels: 20
CHF 5,120.00
Delivery time upon request
785770-01
NI
785770-01
PXIe-5111 PXI Oscilloscope, 350 MHz, 8 bits, 3 GS/s, 2 channels, 512 MB
  • With case: Yes
  • Number of channels: 2
  • Bandwidth (MHz): 350
  • Voltage measuring range of the analogue input (V): -20 V to 20 V
  • Number of analogue input channels: 2
  • Samplerate: 3 GS/s
  • Measurements per second/sampling rate (MS/s): 3000
CHF 11,900.00
Delivery time upon request
780587-75
NI
780587-75
NI PXIe-2575, 196-channel multiplexer
  • With case: Yes
  • Relaistyp: Electromechanical
CHF 4,150.00
1 in stock. Ready to ship in 1 business day
783590-03
NI
783590-03
PXIe-5105, 12-bit oscilloscope with 8 channels (60 MHz, 60 MS / s, 512 MB)
  • With case: Yes
  • Number of channels: 8
  • Measurements per second/sampling rate (MS/s): 60
  • Voltage measuring range of the analogue input (V): -15 V to 15 V
  • Bandwidth (MHz): 60
  • Samplerate: 60 MS/s
CHF 16,800.00
Reordered - in stock. Delivery time on request
783124-01
NI
783124-01
NI PXIe-5668R, VSA, 26.5 GHz, 2 GB RAM, 80 MHz bandwidth
  • With case: Yes
  • Number of input channels: 1
  • RF Analyzer Instant Bandwidth (GHz): 0.08
  • Average noise level: -166 dBm/Hz between 300 MHz and 1.7 GHz
  • max. Frequency range (MHz): 26500
  • min. Frequency range (Hz): 20
CHF 150,100.00
Delivery time upon request
783639-01
NI
783639-01
NI PXIe-6592R, high-speed serial protocol meter (10 Gbps)
  • With case: Yes
  • Number of bidirectional digital channels: 4
  • Number of serial channels: 4
  • Communication protocol: Serial
CHF 25,700.00
Delivery time upon request
783760-01
NI
783760-01
NI PXIe-4136, system SMU, 200 V
  • With case: Yes
  • Max. DC source power (W): 20
  • Number of SMU channels: 1
  • max. Power (A): 1
  • Number of analogue output channels: 1
  • Max. Number of differential analogue input channels: 1
CHF 7,860.00
Delivery time upon request
781421-33
NI
781421-33
NI 2833B, 4X71 2-wire EMR matrix up to 2 A for NI SwitchBlock
  • With case: Yes
  • Relaistyp: Electromechanical
CHF 5,150.00
Delivery time upon request
785768-01
NI
785768-01
PXIe-5110, 8-bit oscilloscope with 2 channels (100 MHz, 1 GS / s, 512 MB)
  • With case: Yes
  • Number of channels: 2
  • Voltage measuring range of the analogue input (V): -20 V to 20 V
  • Number of analogue input channels: 2
  • Measurements per second/sampling rate (MS/s): 1000
  • Samplerate: 1 GS/s
  • Bandwidth (MHz): 100
CHF 4,610.00
1 in stock. Ready to ship in 1 business day
787354-01
NI
787354-01
PXIe-7866, Multifunction Module with Reconfigurable I / O, 5V, Kintex-7 325T
  • With case: Yes
  • Number of bidirectional digital channels: 32
  • Number of analogue input channels: 2
  • Max. Update rate (MS/s): 1
  • Measurements per second/sampling rate (MS/s): 1
  • Logic level of the digital I/O: 3.3 V, 5 V
  • Voltage measuring range of the analogue input (V): -5 V to 5 V, -2 V to 2 V, -10 V to 10 V, -1 V to 1 V
  • Number of analogue output channels: 24
  • Logic level and range: 3.3 V, 5 V
  • Samplerate: 1 MS/s
CHF 15,700.00
Delivery time upon request
780587-14
NI
780587-14
NI PXIe-2514, switching module with FIU, 7 channels, 40 A
  • With case: Yes
  • Relaistyp: FET
CHF 6,880.00
Delivery time upon request
778572-35
NI
778572-35

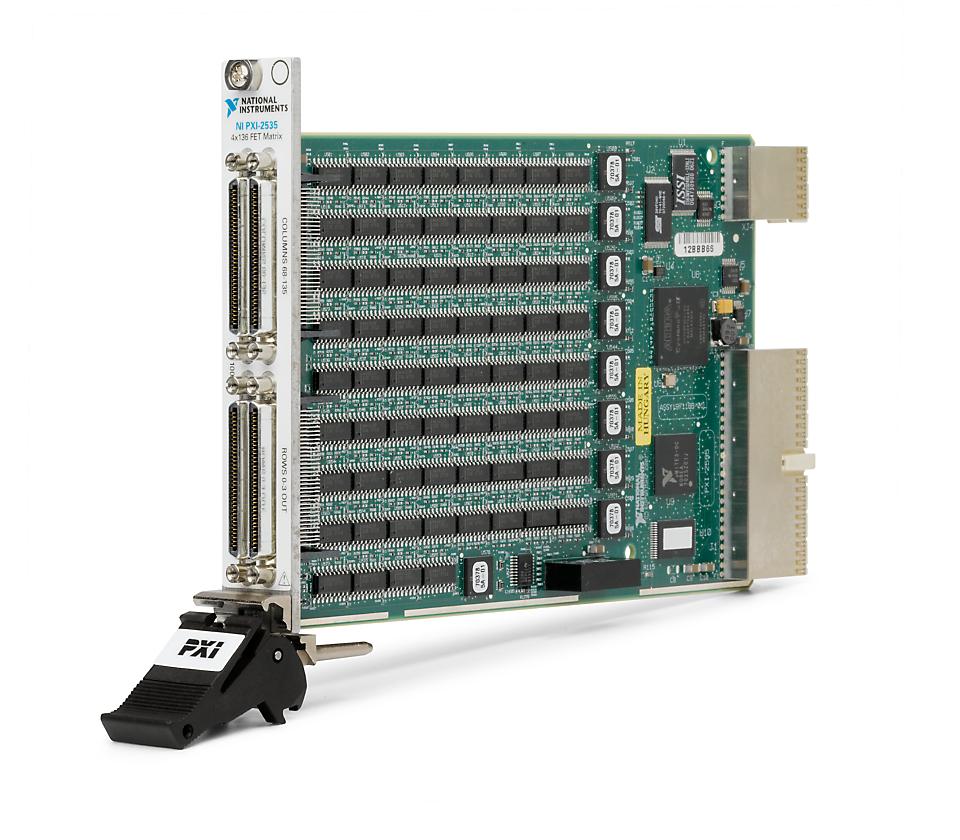

PXI-2535, PXI matrix switch with 544 crosspoints, FET relay (100 mA, 12 V)
  • With case: Yes
  • Relaistyp: FET
CHF 6,550.00
Delivery time upon request
778739-01
NI
778739-01
PXI-2529, PXI matrix switch with 128 crosspoints, electromechanical relay (1 A, 150 V)
  • With case: Yes
  • Relaistyp: Electromechanical
CHF 4,530.00
3 in stock. Ready to ship in 1 business day
778969-01
NI
778969-01
NI PXI-6512, industrial digital output module, 64 sourcing outputs, isolated on a bank, NI-DAQ
  • With case: Yes
  • Number of digital outputs: 64
  • Logic level and range: 24 V, 0.0V - 30.0V
  • Logic level of the digital I/O: 24 V
CHF 1,140.00
Delivery time upon request
780587-44
NI
780587-44
NI PXIe-2544, 8x1 solid-state multiplexer, 50 ohms, 6.6 GHz
  • With case: Yes
  • Relaistyp: FET
CHF 7,170.00
Delivery time upon request
780683-01
NI
780683-01
NI PCI-8512, CAN interface card (high speed/flexible data rate, 1 connection)
  • With case: Yes
  • CAN physical layer: High-speed, flexible data rate
  • Communication protocol: CAN
  • Number of CAN connections: 1
CHF 2,470.00
Delivery time upon request
779967-02
NI
779967-02
PXIe-5122, 14-bit oscilloscope with 2 channels (100 MHz, 100 MS / s, 64 MB per channel)
  • With case: Yes
  • Number of channels: 2
  • Bandwidth (MHz): 100
  • Samplerate: 100 MS/s
  • Voltage measuring range of the analogue input (V): -10 V to 10 V
  • Measurements per second/sampling rate (MS/s): 100
CHF 19,700.00
Delivery time upon request
