RF Shielding Tents for EMC Measurements.

In the field of electromagnetic compatibility (EMC), the manufacturer shieldex offers products that ensure a shielded environment for your EMC pre-compliance tests (EMC pre-tests). The mobile EMC tents with metallized fabric from Shieldex transform any space into a measurement laboratory. Learn more about the solutions that provide perfect electromagnetic shielding for your electronic measurement equipment.


Flexible and mobile Laboratories for safe Shielding.


Electronic devices must be tested by the manufacturer for electromagnetic compatibility and compliance with regulations before they can be placed on the market. These so-called conformity tests are usually carried out in test laboratories with special measuring equipment and a shielded RF chamber that absorbs the electromagnetic waves so that the immunity can be tested. There is often a wait of several weeks for an appointment for product testing and each test run can cost several thousand euros. If the design of the product then has to be improved, in the worst case scenario the market launch has to be postponed.

With the Shieldex RF shielding tents, you have your own test laboratory on site and can make improvements as often and quickly as you like:

  • Completely shielded measurement independent of external sources of interference
  • Great time and cost savings
  • High shielding performance
  • Simple assembly/disassembly
  • Rugged design and durable material, even for demanding environments

The Models.

The EMC shielding tents turn any room into a measurement laboratory. The smaller tents are suitable for the precision measurement of small objects, for example, while the large tents can be used to measure bulky objects. All EMC tents are made from a high-quality combination of materials and metal (two or three layers), which ensures excellent shielding from electromagnetic waves. The materials are perfectly matched and provide an excellent barrier against electromagnetic radiation. In addition, all models include a shielded cable conduit and a textile door with a shielding zipper. These five models are available from dataTec:

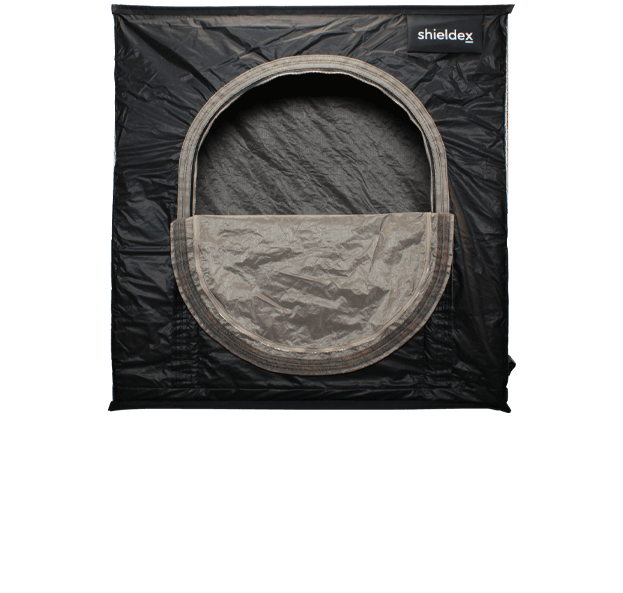

Das Modell ist für die Pendulum EMV-Scanner der SCN-500-Serie ideal geeignet.

  • Durchschnittlich 75 dB Abschirmleistung zwischen 0,03 bis 7 GHz
  • Innenmaß (B x H x T) 1.000 x 1.000 x 700 mm
  • Dreilagige Materialkombination bestehend aus Silber, Kupfer, Nickel und Zinn

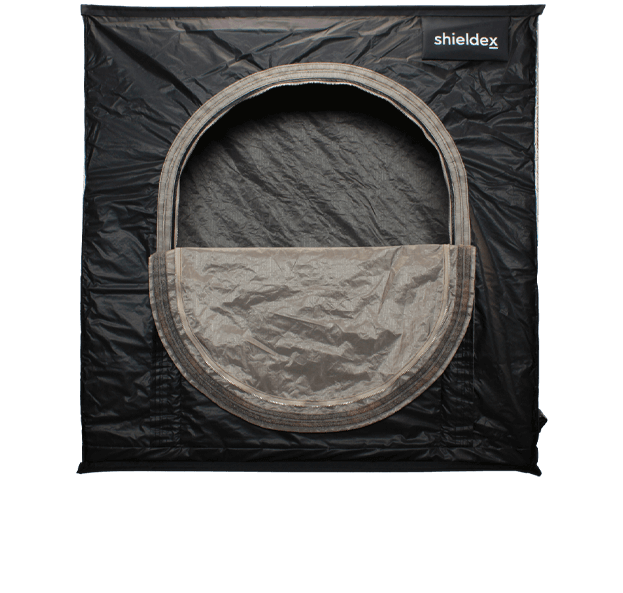

Für das größere EMV-Scanner Modell SCN-564 ist dieses Modell geeignet.

  • Durchschnittlich 75 dB Abschirmleistung zwischen 0,03 bis 7 GHz
  • Innenmaß (B x H x T) 1.350 x 1.180 x 1.000 mm
  • Dreilagige Materialkombination bestehend aus Silber, Kupfer, Nickel und Zinn

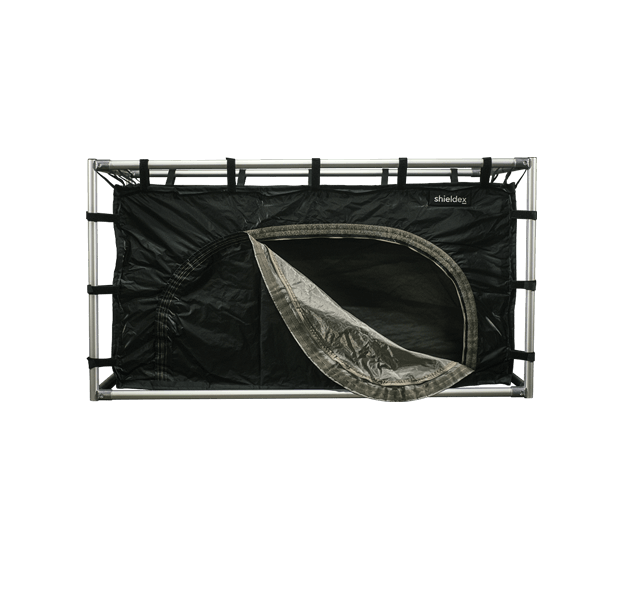

Dies ist das sogenannte Table Top-Modell, das schnell und einfach auf Tischen installiert kann. Hier kann das Testgerät direkt am Arbeitsplatz geprüft werden.

  • Durchschnittlich 88 dB Abschirmleistung zwischen 0,03 bis 16 GHz
  • Innenmaß (B x H x T) 1.220 x 610 x 610 mm
  • Dreilagige Materialkombination bestehend aus Silber, Kupfer, Nickel und Zinn

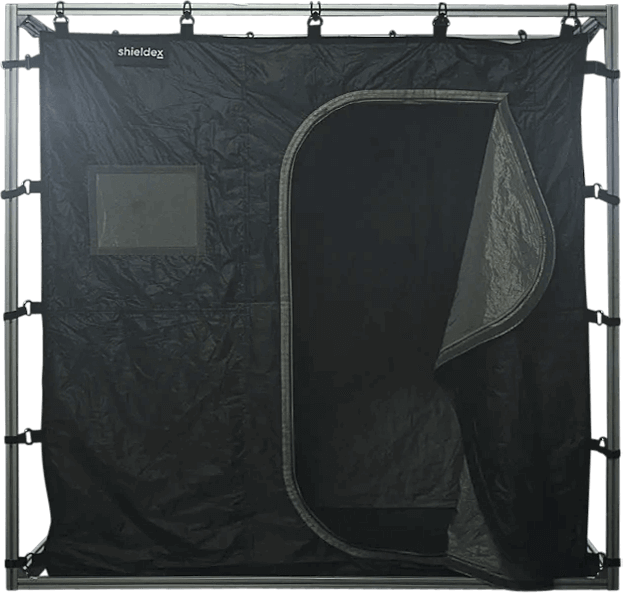

Das Modell mit zweilagiger Materialkombination ist ein EMV-Personenzelt (EMC Shielded Enclosure), welche durch seine Größe einen bequemen Zugang zur störungsfreien Arbeit mit elektronischen Geräten ermöglichen.

  • Durchschnittlich 75 dB Abschirmleistung zwischen 0,3 bis 18 GHz
  • Innenmaß (B x H x T) 2.150 x 2.180 x 2.150 mm
  • Zweilagige Materialkombination bestehend aus Silber, Kupfer und Nickel

Dieses EMV-Personenzelt (EMC Shielded Enclosure) hat eine dreilagige Material­kombination, welche im Gegensatz zum Modell PBN2 zusätzlich noch Zinn verwendet, um eine noch höhere Abschirmung zu gewährleisten.

  • Durchschnittlich 95 dB Abschirmleistung zwischen 0,03 bis 40 GHz
  • Innenmaß (B x H x T) 2.150 x 2.180 x 2.150 mm
  • Dreilagige Materialkombination bestehend aus Silber, Kupfer, Nickel und Zinn
Construction and Setup of the Table Top Model
Construction and Setup of the Person Tents

Product Overview.

Find the right Model for your Requirements now:

RF-X C
CHF 5,201.00
Delivery time upon request
RF-X D
CHF 5,558.00
Delivery time upon request
Exclusive Promotion AC01067
Sale
Exklusiv
On Request
RF-X TBZN3
CHF 5,135.00
Delivery time upon request
RF-X PBN2
On Request
Delivery time upon request
RF-X PBZN3
On Request
Delivery time upon request
