Teledyne FLIR CM78-PV | Current clamp for solar systems, 1500 VDC, 1000 A AC/DC

Name: CM78-PV | Current clamp for solar systems, 1500 VDC, 1000 A AC/DC
Brand: Teledyne FLIR
SKU: CM78-PV
Availability: InStock

Manufacturer number: CM78-PV

Delivery time upon request

On Request

or choose one of the following options:

Request a quote Product inquiries Share

Teledyne Flir CM78-PV | Current clamp for solar systems, 1500 VDC, 1000 A AC/DC.

Product features:

Display range: 6,000
A AC/DC: 1.000 V / measuring accuracy ±2.0 %
Connectivity: Bluetooth BLE
Safety category: IEC 61010-1 CAT IV-600 V, CAT III-15000 V
Start-up AC current strength: 1,000 A range / measuring accuracy ±3.0 %
Diode test: < 3.0 V / ±1.5 %
True RMS value (TRMS): Yes
Frequency meter: 60 kHz / ±1.0 %
DC voltage: 1,500 V / measuring accuracy ±1.0 %
Capacitance: 6.000 µF / measuring accuracy ±3.0 %
Measuring range flex current clamp: 3,000 A / ±3.0 %
Measuring frequency: 3 measurements per second
PV DC voltage: range 1,500 V / measuring accuracy ±2.0 %
PV DC current: range 1.500 kVA / measuring accuracy ±2.0 %
Protection class: CAT IV-600 V, CAT III-1500 V
Threshold value continuity test: <50 Ω signal tone on, >150 Ω signal tone off
Temperature: -10°C to 30°C (14°F to 86°F), < 85 % RH; 30°C to 40°C (86°F to 104°F), < 75 % RH; 40°C to 50°C (104°F to 122°F), < 45 % RH
V LoZ AC/DC: AC: 1.000 V / measuring accuracy ±1.5 %; DC: 1,500 V / measuring accuracy ±1.5 %
VFD mode AC voltage: 1,000 V AC / ±2.0 % at 45–65 Hz
VFD mode AC current: range 1,000 A / measuring accuracy ±5.0 %
AC voltage: 1.000 V / measuring accuracy ±1.0 %
AC current strength flex input in amperes: range 3,000 A / measuring accuracy ±3.0 %
Resistance: 60 MΩ / measuring accuracy ±1.0 %

Documents & Downloads

Overview

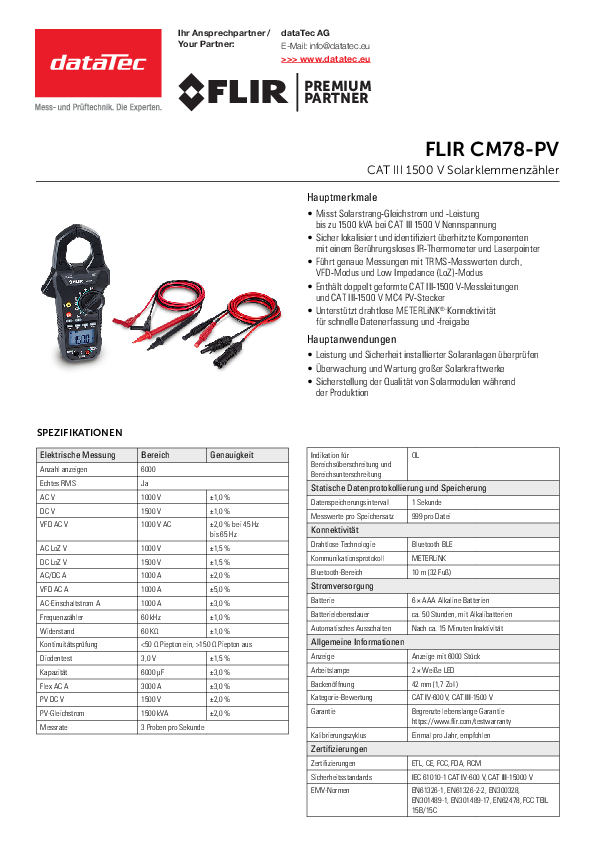

pdf | 0.17 MB

Description

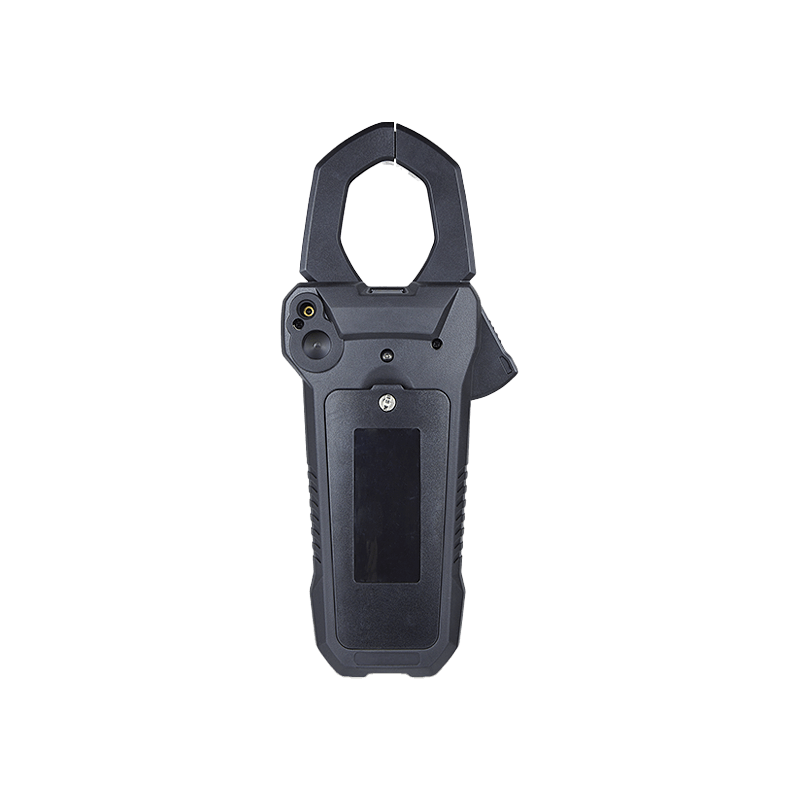

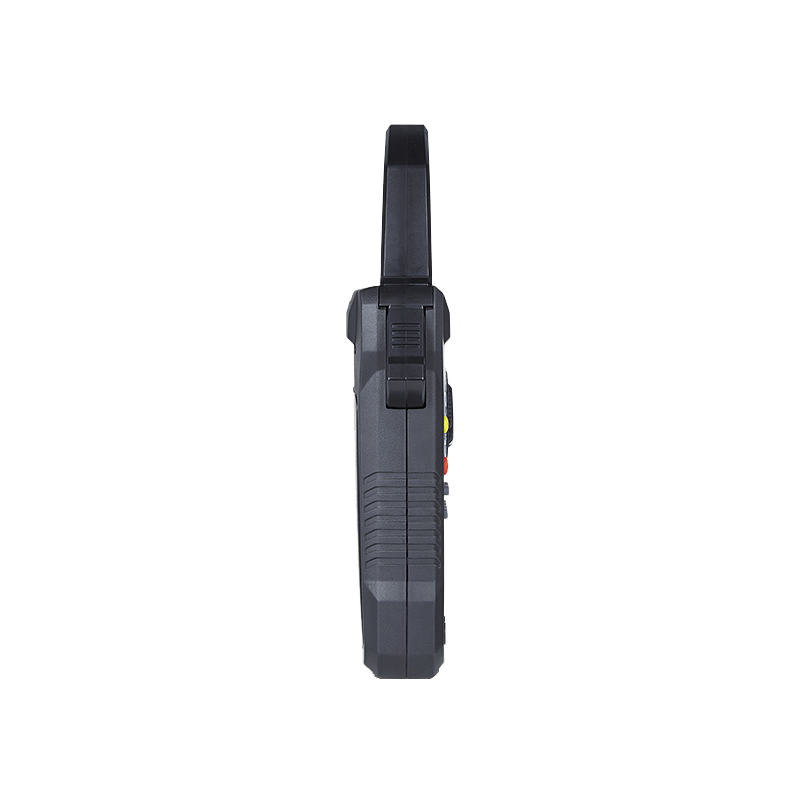

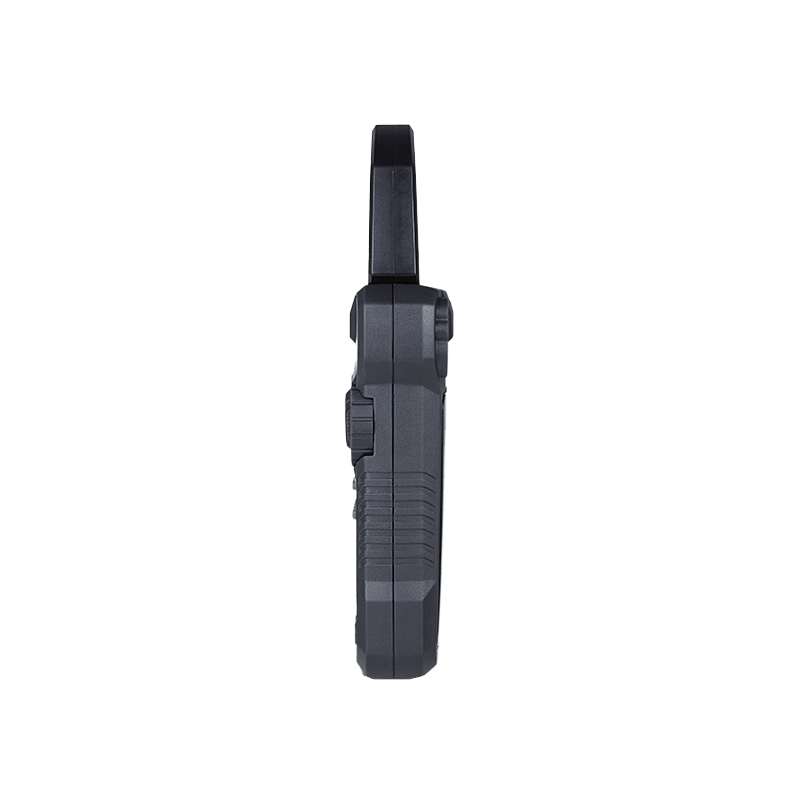

CM78-PV | Current clamp for solar systems, 1500 VDC, 1000 A AC/DC

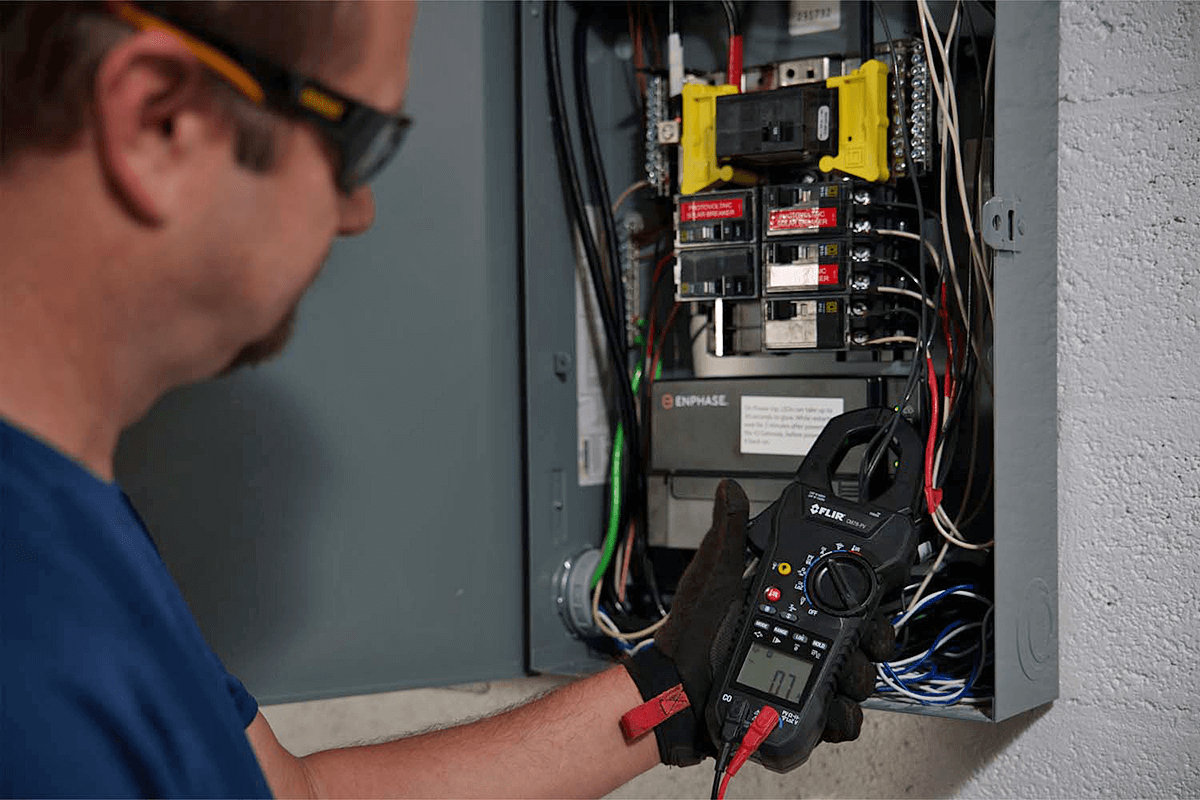

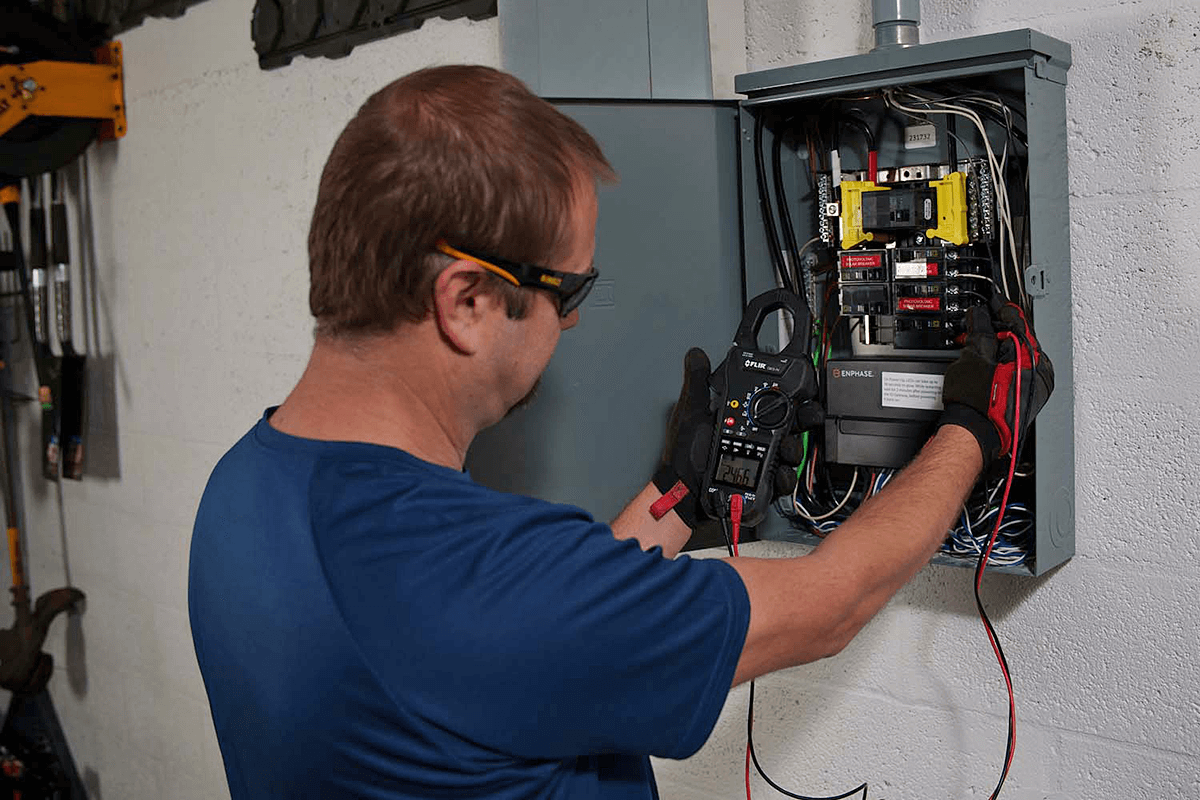

The FLIR CM78-PV has been specially developed for electrical inspections in commercial and industrial environments and is ideal for use on photovoltaic systems. It supports DC voltage measurements up to 1,500 V via test leads and current measurements up to 1,000 A, both DC and AC, via the integrated clamping jaw.

The measuring device is equipped with numerous professional functions, including inrush current detection, support for frequency converters, true RMS (true RMS measurement) and a low-impedance mode, ideal for demanding test and measurement tasks. An integrated, non-contact infrared thermometer enables quick fault diagnosis on control panels, cables or motors, while contact-based measurements or the data logger function for recording intermittent faults provide additional precision.

Thanks to Bluetooth-enabled FLIR Meterlink technology, all measurement data can be conveniently transferred to the Meterlink app on your mobile device. Perfect for immediately documenting, evaluating and sharing results directly from the field.
