SEFRAM DAS30 | Data logger / recorder, 2-channel, 1 μs, 32 GB, touchscreen

Name: DAS30 | Data logger / recorder, 2-channel, 1 μs, 32 GB, touchscreen
Brand: SEFRAM
SKU: DAS30
Price: 2987.0 CHF
Availability: InStock

Manufacturer number: DAS30

Delivery time upon request

CHF 2,987.00

plus VAT. CHF 3,228.95 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

Sefram DAS30 | 2- / 16-channel data logger with touch screen for data logging and performance analysis with an acquisition speed of 1 μs to max. 10 min.

2 isolated analog channels
Double insulation between ground and measuring channel:> 100 MΩ to 500 V DC.
Universal input with max. 1000 V (-500 V to +500 V)
DC, DC + AC RMS voltage measurement
Integrated frequency measurement and counter
Temperature measurement: thermocouple, Pt100 / Pt1000 (optional)
Performance analysis function / XY and FFT display
16 digital input channels
Resolution: 14 bits
Sampling rate: 1 MS / s
Bandwidth: 100 kHz
Scanning: Fastest scanning 1 μs to max. 10 min . Sampling period
32 Gb internal memory for measured values / results
USB interface for ext. Storage
LAN interface for transferring the measured values to the PC
Interfaces: 2 x USB, Ethernet
LCD touch screen with 24.5 cm (10 inch) screen diagonal, 1024 x 600 dots
Language adjustable via menu: German, French, Spanish, English, Italian, Swedish
Lithium ion battery
Battery life: up to 9.5 hours
Security: IEC 1010 - CAT III 600V
Thermal printer 110 mm width available (optional)
Dimensions: Width: 295 x Height: 210 x Depth: 105 mm
Weight: 2.5 kg

Technical Data

Accuracy temperature:	Reference cold junction compensation ±1.25°C
Accuracy voltage measurement:	±0.1 % range, ±10 µV / ± 0.1 % offset
Alarm outputs:	2
Article number:	DAS30
Dimensions (L x W x H) (mm):	105 x 295 x 210
Display:	10 inch, TFT touchscreen
Interfaces:	USB, LAN
Max. battery life:	9,5 h
Measured value memory:	32 GB
Model:	DAS30
Number of channels:	2
Resolution (bit):	14
Special features:	20 automatic measurements optional: Thermal printer 110mm width
Temperature sensors Types:	Thermocouple, Pt100, Pt1000
Voltage measuring range:	1 mV - 1000 V
Warranty (years):	2
Weight (kg):	2.5

Description

DAS30 | Data logger / recorder, 2-channel, 1 μs, 32 GB, touchscreen

The robust portable multi-function data logger DAS30 is suitable for all data recordings occurring in the industrial environment . The measurement data can be checked / displayed on the integrated display both in the form of a curve and as a number. The data is continuously written to the internal memory or to a USB memory stick during data acquisition. The data can be transferred to a computer using the Sefram software. The device fulfills the safety requirements according to: IEC61010, CAT.III 600V.

The large LCD touch screen display enables a simple and clear display of the measurement menus as well as a razor-sharp display of the recorded data / curve run. It can also be used to transfer data.

Areas of application for this data logger include: error diagnosis / recording during maintenance, measurement of voltage, current, temperature in / on electrical systems, performance analysis in 1-phase systems.

Lieferumfang

operation manual
Help CD with software and notes
Mains charger
25-pin plug inserts
Housing shell for plugs
Set with red and black cables + alligator clips + banana plugs
Transport case

Accessoires

SEFRAM
903001000

Transport case for data logger DAS30 and DAS50

Delivery time upon request

CHF 382.00

Chauvin Arnoux
P01120305

C107 current probe, 4 mm, 1200 A 30 Hz - 10 kHz, U-Out

Delivery time upon request

CHF 477.00

Chauvin Arnoux
P01120309

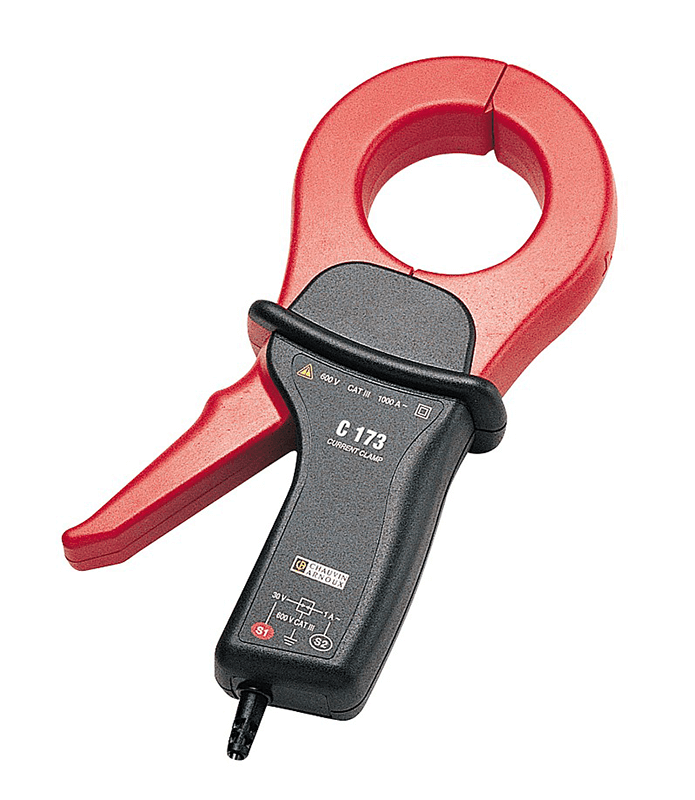

C173 current probe, 4 mm, 1200 A 10 Hz - 3 kHz, U-Out
