Rohde&Schwarz UDS500 | Multimeter, 5.5 digits, 1000 V DC, 750 V AC, 10 A, 100 kHz, USB, LAN (3658.6470.02)

Name: UDS500 | Multimeter, 5.5 digits, 1000 V DC, 750 V AC, 10 A, 100 kHz, USB, LAN (3658.6470.02)
Brand: Rohde&Schwarz
SKU: 3658.6470.02
Price: 891.0 CHF
Availability: InStock

Manufacturer number: 3658.6470.02

Delivery time upon request

CHF 891.00

plus VAT. CHF 963.17 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

Rohde & Schwarz UDS500 | Multimeter, 5.5 digits, 1000 V DC, 750 V AC, 10 A, 100 kHz, USB, LAN (3658.6470.02).

Technical Data

2-/4-wire:	2-/4
Accuracy voltage measurement DC:	0,015 %
Article number:	3658.6470.02
Current measuring range DC:	20 mA - 10 A
Dimensions (L x W x H) (mm):	291 x 222 x 97
Diode test / continuity test:	Yes / Yes
Display:	3.5" / QVGA (color)
Frequency measuring range:	5 Hz - 100 kHz
Interfaces:	USB, LAN
Measurements per second:	200
Model:	UDS500
Number of positions:	5.5
Special features:	Simultaneous display of three measured values, data logger
Temperature measurement:	Yes
Voltage measuring range AC:	750 V
Weight (kg):	2.7
max. Measuring range DC (V):	1000
min. Measuring range DC (mV):	200

Description

UDS500 | Multimeter, 5.5 digits, 1000 V DC, 750 V AC, 10 A, 100 kHz, USB, LAN (3658.6470.02)

The UDS series from Rohde & Schwarz comprises compact digital multimeters that have been specially designed for use in general laboratories, production and training facilities. This series offers a balanced combination of high accuracy, functional versatility and user-friendly design, making it ideal for both general use and demanding test tasks in the production environment. The UDS series is the perfect successor to the HMC8012 from Rohde & Schwarz.

General features of the series:

Measurement range: DC to 100 kHz
Digit resolution: up to 6½ digits
Baseline accuracy (DC): 0.0075 %
Highest resolution: 100 nV, 10 nA, 0.1 mΩ, 0.1 pF, 1 Hz, 0.1 °C
Sampling rate: up to 200 readings per second
Measuring range: up to 2.000,000 counts
Simultaneous display of three measured variables (e.g. DC, AC and statistical values)

The devices have a QVGA color display with clear presentation and enable limit value checks directly on the screen, ideal for quick minimum/maximum analyses. Mathematical functions and built-in statistical evaluations are also available. The two- and four-wire measurement offers additional flexibility in use.

Thanks to SCPI-based remote control, Ethernet interface (LAN) with integrated web server and available driver packages, the multimeters can be easily integrated into existing measurement systems.

Alternate products

Series

Rohde&Schwarz
UDS600

Multimeter, 6.5 digits, 1000 V DC, 750 V AC, 10 A, 100 kHz, USB, LAN (3658.6470.03)

Delivery time upon request

CHF 1,106.00

Series

Rohde&Schwarz
UDS500-G

Multimeter, 5.5 digits, 1000 V DC, 750 V AC, 10 A, 100 kHz, USB, LAN, GPIB (3658.6470.04)

Delivery time upon request

CHF 1,312.00

Series

Rohde&Schwarz
UDS600-G

Multimeter, 6.5 digits, 1000 V DC, 750 V AC, 10 A, 100 kHz, USB, LAN, GPIB (3658.6470.05)

Delivery time upon request

CHF 1,528.00

About the Manufacturer

Rohde&Schwarz

Rohde & Schwarz is a globally recognized technology group headquartered in Munich and offers precise measurement solutions for the electronics and semiconductor industries, telecommunications, aerospace, and defense technology. The portfolio includes oscilloscopes, signal generators, spectrum and network analyzers, digital multimeters, LCR meters, DC power supplies, and Source Measure Units.

Rohde&Schwarz UDS500 | Multimeter, 5.5 digits, 1000 V DC, 750 V AC, 10 A, 100 kHz, USB, LAN (3658.6470.02)

Rohde & Schwarz UDS500 | Multimeter, 5.5 digits, 1000 V DC, 750 V AC, 10 A, 100 kHz, USB, LAN (3658.6470.02).

Technical Data

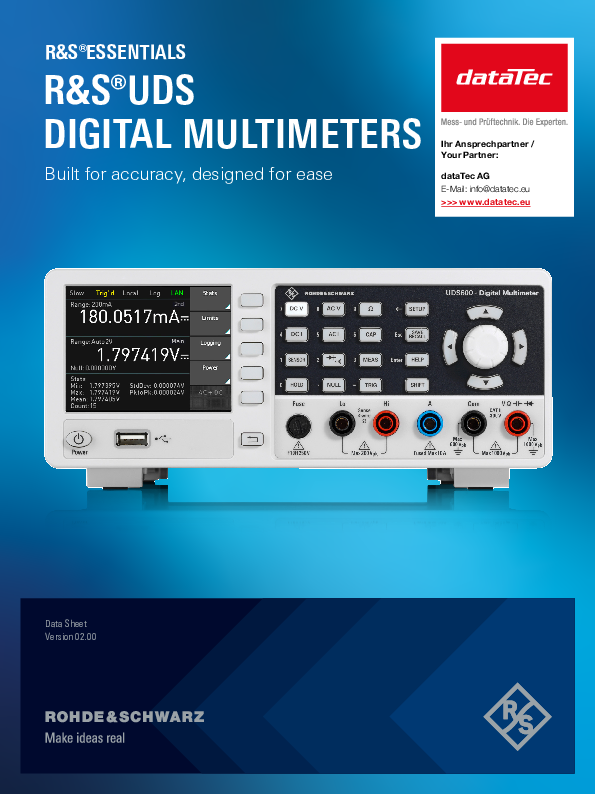

Documents & Downloads
