NI 789155-01 | NI USRP B206mini-i with Enclosure (1X1, 70 MHZ - 6 GHZ)

Name: 789155-01 | NI USRP B206mini-i with Enclosure (1X1, 70 MHZ - 6 GHZ)
Brand: NI
SKU: 789155-01
Price: 1650.0 CHF
Availability: InStock

Manufacturer number: 789155-01

Delivery time upon request

CHF 1,650.00

plus VAT. CHF 1,783.65 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries

NI 789155-01 | NI USRP B206mini-i with Enclosure (1X1, 70 MHZ - 6 GHZ).

Product features:

Frequency range: 70 MHz to 6 GHz
Bandwidth: up to 56 MHz
Transmit/receive channels: 1 Tx, 1 Rx
FPGA: Xilinx Spartan-6 LX150
Interface: USB 3.0 Type-C (bus-powered)
Dimensions (board only): 84.3 x 51.6 x 8.4 mm, 25 g
Dimensions (with housing): 85 x 55.7 x 18 mm, 108 g
Synchronization: 10 MHz or PPS reference
Control: GPIO, JTAG
Operating temperature: 0 to 40 °C (board only), -40 to +75 °C (with housing)
Development tools: UHD, GNU Radio, Python, C/C++, LabVIEW
Software compatibility: UHD driver (open source)

Documents & Downloads

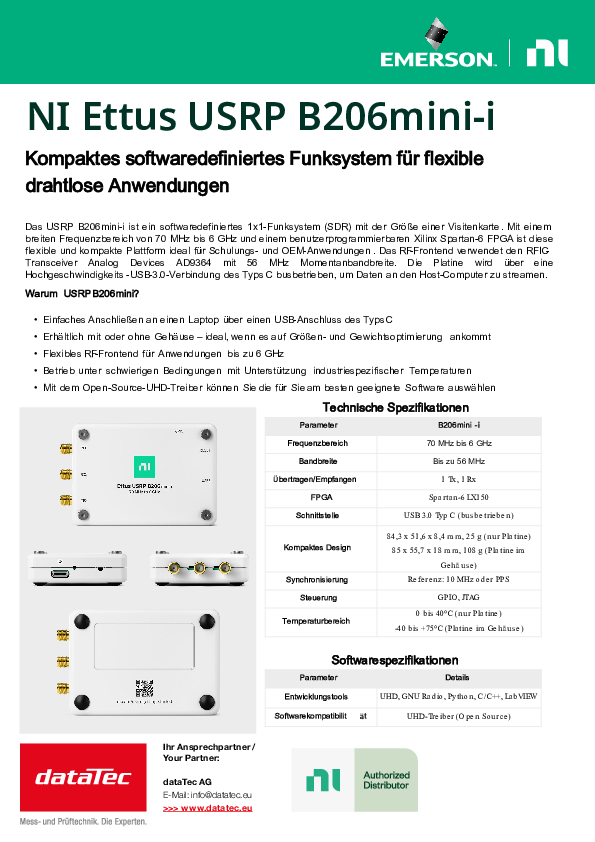

Overview

pdf | 1.06 MB

Description

789155-01 | NI USRP B206mini-i with Enclosure (1X1, 70 MHZ - 6 GHZ)

The USRP B206mini-i is a 1x1 software-defined radio (SDR) in the format of a business card. With a wide frequency range from 70 MHz to 6 GHz and a user-programmable Xilinx Spartan-6 FPGA, this flexible and compact platform is ideal for educational institutions and OEM applications. The RF front-end technology is based on the Analog Devices AD9364 RFIC with a bandwidth of 56 MHz. Power is supplied via a fast USB 3.0 Type-C connection, which also enables data transfers to the host computer.

Advantages:

Easy connection to laptops via USB Type-C
Available with or without housing - ideal for applications with limited space or weight
Flexible HF-front end for applications up to 6 GHz
Industry-grade temperature range for demanding operating conditions
Compatible with the open source UHD driver - maximum software freedom
