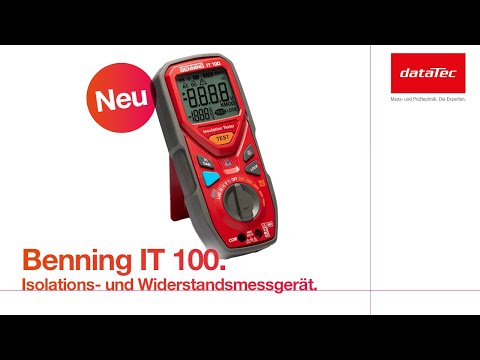

Benning IT 100 | Insulation and resistance measuring device for standard-compliant testing of electrical systems (044107)

Manufacturer number: 044107

IT 100
IT 100
IT 100
IT 100
IT 100
IT 100
IT 100
IT 100
IT 100
IT 100
IT 100
IT 100
IT 100
IT 100
IT 100
IT 100
IT 100
IT 100
IT 100
IT 100
IT 100
Delivery time upon request

CHF 399.00

plus VAT. CHF 431.32 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Scope Related Articles

BENNING 044107 | IT 100 insulation and resistance measuring device for standard-compliant testing of electrical systems.

  • Display: 9999 digits (illuminated)
  • Insulation resistance: 300kΩ - 20MΩ
  • Low Ohm Resistance: 0.01Ω - 60Ω
  • Resistance: 0.1Ω - 40kΩ
  • Voltage: 0.1V - 600VAC/DC
  • Continuity test: acoustic/optical 600 Ω
  • Additional functions: polarization index (PI), absorbance (DAR), automatic discharge function, zeroing of the test leads, integrated fuse test, reverse voltage test lock
  • Measurement method: RMS
  • Measurement category: CAT IV 600 V

Technical Data

Documents & Downloads

Datasheet
pdf | 0.65 MB
Userguide
pdf | 12.45 MB
Datasheet
pdf | 0.65 MB
Userguide
pdf | 12.45 MB

Description

IT 100 | Insulation and resistance measuring device for standard-compliant testing of electrical systems (044107)

Multifunctional measuring device for many applications in the electrical installation and electrical industry

Measurement functions:

  • Low-ohm resistance of protective conductor and equipotential bonding connections (test current: 200 mA)
  • Insulation resistance with test voltages of 50 V, 100 V, 250 V, 500 V and 1000 V
  • Resistance measurement with 200 mA test current for testing protective conductor connections with measuring line zero balance
  • Continuity test with beep
  • voltage measurement
  • Determination of polarization index (PI) and absorbance (DAR)

Features:

  • Many measuring functions combined in one device
  • Test and external voltage display via red LED
  • Test function to check the internal fuse
  • Automatic prevention of the reverse voltage test
  • Compact and handy housing design
  • Protective rubber frame for rough, industrial use
  • Large LC display with backlight

Scope of Delivery

  • BENNING IT 100
  • high-quality protective bag
  • protective rubber frame
  • 4 mm test lead and probe tip set
  • alligator clips
  • batteries
