GW Instek DAQ-900 | 20-Channel Universal Multiplexer Module (Solid State Relay) for Data Logger DAQ-9600

Manufacturer number: DAQ-900

DAQ-900
DAQ-900
DAQ-900
DAQ-900
Delivery time upon request

CHF 707.00

plus VAT. CHF 764.27 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Related Articles

GW Instek DAQ-900 | 20-channel universal multiplexer module (solid state relay) for DAQ-9600 data logger.

Documents & Downloads

Brochure
pdf | 5.26 MB
Datasheet
pdf | 2.22 MB
Userguide
pdf | 4.53 MB

Description

DAQ-900 | 20-Channel Universal Multiplexer Module (Solid State Relay) for Data Logger DAQ-9600

The GW Instek DAQ-900 for the DAQ-9600 data logger mainframe is a solid-state relay module that provides two groups (A/B) of 10 2-wire channels each. All 20 channels can be switched to high (HI) and low (LO) inputs, providing fully isolated inputs for the built-in digital meter or external instruments. For 4-wire resistance measurements, Group A channels are automatically paired with Group B channels to provide current and measurement connections. The module has a built-in cold junction reference that can significantly reduce errors caused by thermal gradients when measuring thermocouples.

Product features:

  • Sampling speed of up to 450 channels per second
  • 2-wire and 4-wire sampling
  • Built-in temperature cold junction control
  • 120 V circuit

Accessoires

DAQ-9600
Series
Series
GW Instek
DAQ-9600
data logger / switching system, mainframe, basic device, 3 slots, USB, LAN
Delivery time upon request
CHF 1,707.00
DAQ-9600-GPIB
Series
Series
GW Instek
DAQ-9600-GPIB
Data logger / switching system, mainframe, basic device, 3 slots, USB, LAN, GPIB
Delivery time upon request
CHF 2,139.00

Alternate products

DAQ-901
GW Instek
DAQ-901
20 + 2-channel universal multiplexer module (Armature Relay) for DAQ-9600 data logger
Delivery time upon request
CHF 482.00
DAQ-909
GW Instek
DAQ-909
8 + 2-channel high voltage/current multiplexer module for DAQ-9600 data logger
3 in stock. Ready to ship in 1 business day
CHF 599.00

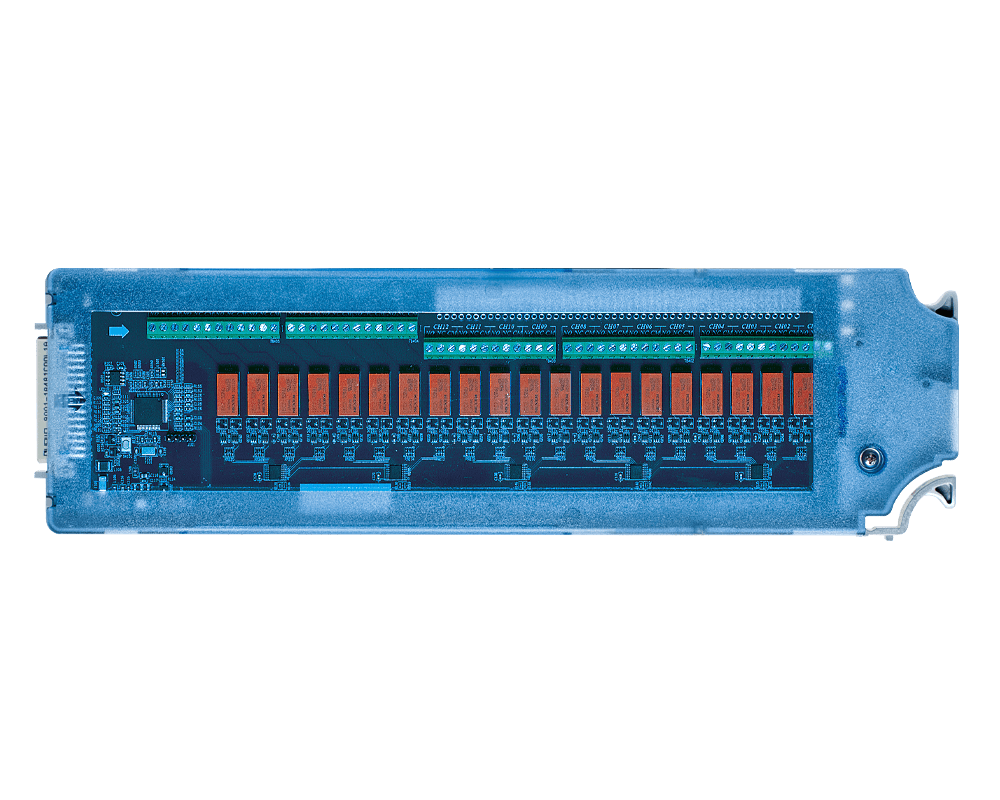

DAQ-908
