EXTECH 380976-K | Current clamp, HVAC (CAT IV-600V test leads)

Manufacturer number: 380976-K

380976-K
5 in stock. Ready to ship in 1 business day

CHF 300.00

plus VAT. CHF 324.30 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description

EXTECH 380976-K | Current Clamp Kit, 1,000 A AC, HVAC (CAT IV-600V test leads).

  • AC microcurrent 1,000 µA
  • AC microcurrent basic accuracy ±1%
  • AC microcurrent max. resolution 10 nA
  • Reactive power 600 kVAR
  • Reactive power basic accuracy ±5%
  • Reactive power max. resolution 10 VAR
  • DC microcurrent 1,000 µA
  • DC microcurrent basic accuracy ±1%
  • DC microcurrent max. resolution 10 nA
  • Frequency 40 Hz to 1 kHz
  • Frequency basic accuracy ±0.5%
  • Frequency max. resolution 0.1 Hz
  • DC voltage 600 V
  • DC voltage basic accuracy ±1 %
  • DC voltage max. resolution 0.1 mV
  • Capacitance 7,000 µF
  • Capacitance max. resolution 1 nF
  • Low resistance 1,000,000 Ω
  • Low resistance basic accuracy ±1 %
  • Low resistance max. resolution 0.1 Ω
  • Horsepower 800 HP
  • Horsepower basic accuracy ±5 %
  • Horsepower max. resolution 0.01 HP
  • Phase -60 to +60°
  • Phase Basic accuracy ±6°
  • Phase Max. resolution 0.1°
  • Apparent power 600 kVA
  • Apparent power Basic accuracy ±2%
  • Apparent power Max. resolution 100 VA
  • Temperature (Type K) Max. resolution -50 to 900 °C
  • Temperature (Type N) ±1%
  • Temperature (Type N) Basic accuracy 0.1 °F/°C
  • AC voltage 600 V
  • AC voltage Basic accuracy ±1%
  • AC voltage Max. resolution 0.1 mV
  • AC current 1,000 A
  • AC current Basic accuracy ±2%
  • AC current Max. resolution 10 mA
  • Resistance 100 mΩ
  • Resistance Max. resolution 1 kΩ
  • Active power 600 kW/10 W
  • Active power basic accuracy ±5%
  • Active power Max. resolution 10 W
  • Dimensions 228 × 76 × 39 mm
  • Weight 465 g
  • Safety category CAT III – 600 V
  • Power supply 1 × 9 V battery
  • Certifications CE, UL

Technical Data

Documents & Downloads

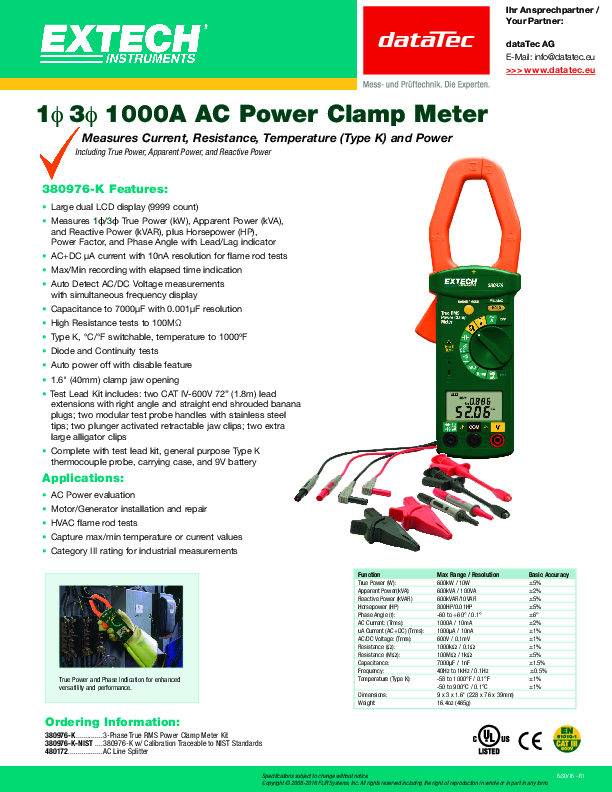

Datasheet
380976-K
pdf | 0.44 MB

Description

380976-K | Current clamp, HVAC (CAT IV-600V test leads)

The Model 380976-K is a single/three-phase 1,000 amp AC clamp meter kit. Measures 1-/3-phase real power (kW), apparent power (kVA), reactive power (kVAR), horsepower (hp), power factor and phase angle with lead/lag indicator. DC/AC voltage measurements with auto-sensing and simultaneous frequency display. In addition, the included test lead kit includes two 72" Category IV test leads, two modular probe handles, two piston-activated jaw clamps and two extra-large alligator clips. Includes test leads, universal probe (Type K), carrying case and 9V battery.

About the Manufacturer

EXTECH
EXTECH

Extech Instruments is a leading provider of portable electronic test and measurement instruments for applications in electrical engineering, HVAC, industry, maintenance, safety, and environmental monitoring. The portfolio includes multimeters, clamp meters, power analyzers, insulation testers, and videoscopes.
