B&K Precision 1739 | DC Power Supply Unit, 30 V, 1 A, RS-232

Manufacturer number: BK1739

B&K Precision 1739 | DC power supply unit, 30 V, 1 A, RS-232.

Produktmerkmale:

  • Ausgangsspannung: 0–30 V
  • Ausgangsstrom: 0–999.9 mA
  • Lastregelung: Spannung: 0,04 % + 1 mV, Strom: 0,4 % + 0,1 mA
  • Leitungsregelung: Spannung: 0,1 % + 3 mV, Strom: 0,4 % + 0,3 mA
  • Wellen & Rauschen (20 Hz – 20 MHz): Spannung < 1 mVrms, Strom ≤ 0,4 mArms
  • Erholzeit: ≤ 75 μs
  • Anzeigeauflösung: Spannung: 10 mV, Strom: 0,1 mA
  • Anzeigegenauigkeit: Spannung: 0,5 % + 2 Stellen, Strom: 0,5 % + 5 Stellen
  • Netzanschluss: 110/220 VAC ±10 %, 50/60 Hz
  • Leistungsaufnahme: ≤ 70 VA
  • Schutzfunktionen: Verpolungsschutz, Strombegrenzung
  • Betriebstemperatur: 0 °C bis 40 °C
  • Lagerungstemperatur: -15 °C bis +70 °C
  • Luftfeuchtigkeit (Betrieb): bis 75 % r. F.
  • Luftfeuchtigkeit (Lagerung): bis 85 % r. F.
  • Temperaturkoeffizient: 300 ppm/°C (0 °C – 35 °C)
  • Abmessungen (B x H x T): 140 x 158 x 318 mm (5,5" x 6,2" x 12,5")
  • Gewicht: 4 kg (9 lbs)

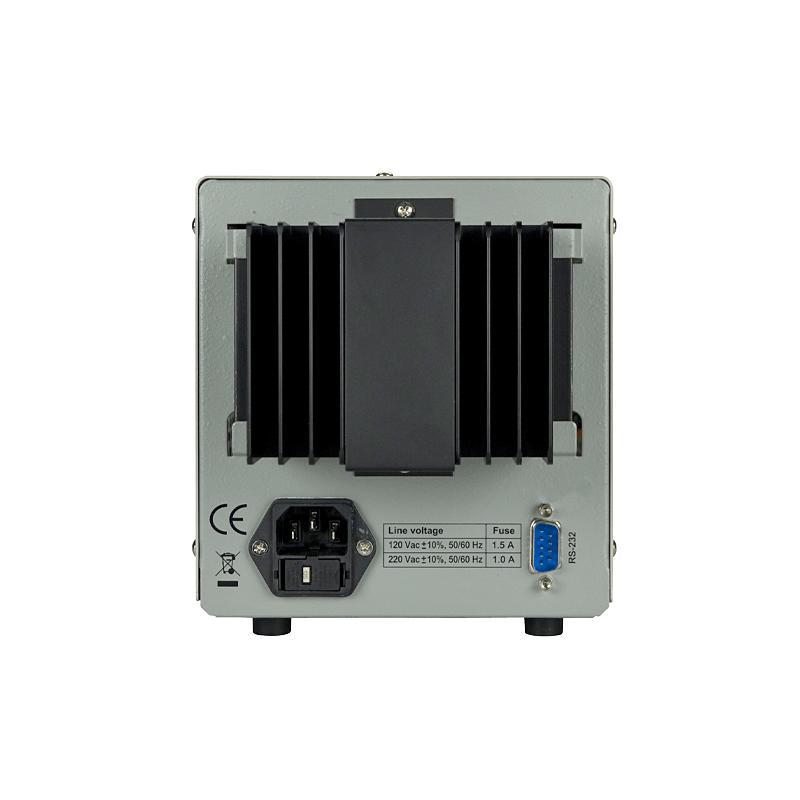

  • Schnittstelle: RS-232 zur Fernsteuerung
  • Lieferumfang: Netzkabel, Bedienungsanleitung, RS-232-Kabel

Technical Data

Documents & Downloads

Description

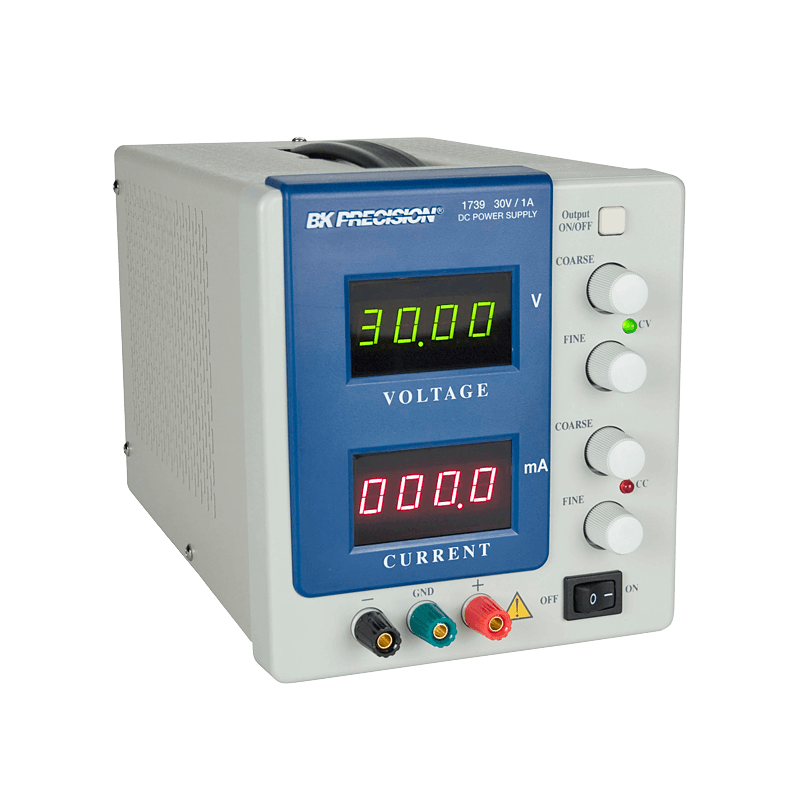

1739 | DC Power Supply Unit, 30 V, 1 A, RS-232

Das B&K Precision Modell 1739 ist ein hochauflösendes, präzises DC-Netzgerät mit besonders niedriger Stromausgabe. Es wurde speziell für Anwendungen mit geringem Strombedarf entwickelt, bei denen eine saubere und stabile Stromversorgung erforderlich ist. Dank seines MOSFET-Schaltungsdesigns, hochwertiger Komponenten mit geringem Temperaturkoeffizienten und einem leistungsstarken Netzfilter bietet das Modell 1739 eine außergewöhnlich geringe Restwelligkeit und Geräuschentwicklung.

Es eignet sich hervorragend für Anwendungen in der Elektronik, die präzise niedrige Strompegel erfordern, wie z. B. 4–20 mA Stromschleifentests, Kalibrierungen oder grundlegende IC-Tests. Das Gerät lässt sich sowohl über das übersichtliche Frontpanel als auch per RS-232-Schnittstelle fernsteuern. Durch sein kompaktes Design spart es wertvollen Platz auf dem Labortisch und ist leicht transportierbar.
