Gossen Metrawatt M693C | Stock sale - Seculife ST HV Secutest S3+ test device VDE Medical MPG, 200mA / 25A test current (DT2757_2405_L)

Manufacturer number: DT2757_2405_L

Special item - Gossen Metrawatt M693C | Seculife ST HV Secutest S3+ test device VDE Medical MPG, 200mA / 25A test current (DT2757_2405_L).

  • Protective conductor resistance measurement with 200 mA and 25 A test current
  • Insulation resistance measurement
  • Earth leakage current measurement
  • Touch current measurement (enclosure leakage current)
  • Patient leakage current measurement AC and DC
  • Patient auxiliary current measurement
  • Replacement leakage current method
  • Direct measurement method
  • Differential current measurement method
  • Connection option for applied parts 4 mm via socket 10+2 (PA4 option)
  • Internal memory for 125 tests
  • RS232 connection
  • DA-II printer adapter (optional)
  • Power supply: Mains connection 110 V / 60 Hz, 230 V / 50 Hz
  • Options: Printer / memory interface (PSI module)
  • Software: The SECULIFE ST is compatible with PS3, visualFM, Fundamed, MD Data and others
  • Display Multiple display thanks to backlit
    dot matrix 128 x 128 dots
  • Weight approx. 5.9 kg
  • Dimensions: W 292 mm x H 300 mm x D 138 mm

Technical Data

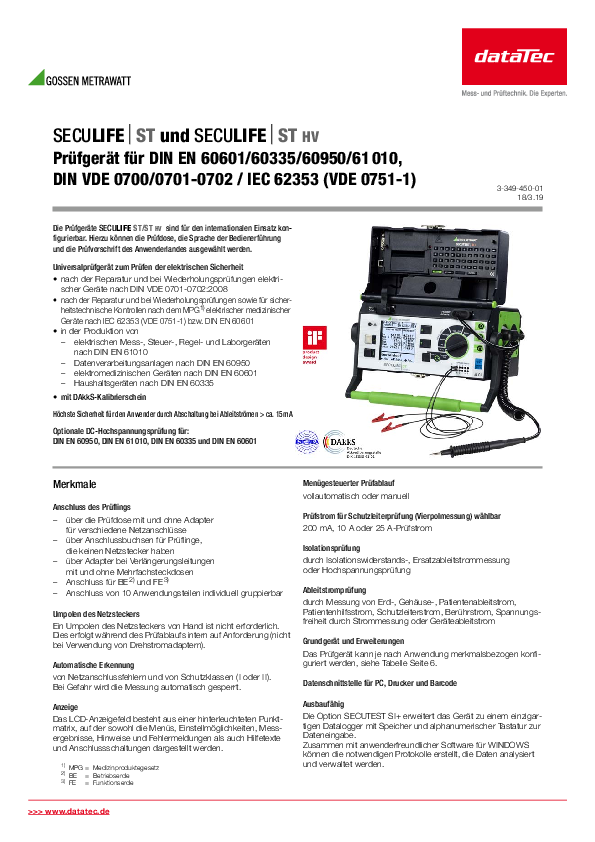

Documents & Downloads

Description

M693C | Stock sale - Seculife ST HV Secutest S3+ test device VDE Medical MPG, 200mA / 25A test current (DT2757_2405_L)

Multifunctional testing device for medical devices. As a multifunctional test device, the SECULIFE ST is ideally suited for carrying out and documenting measurements on medical devices. It enables precise testing of mobile medical devices. As a manufacturer, you can test your devices according to the applicable standard.

As the only measuring device on the market, the SECULIFE ST is designed to also test three-phase devices in the medical field. The three-phase adapters AT3-IIIE and AT3-IIS serve as optional accessories.

Checking electrical safety:

  • Electromedical devices according to DIN VDE 0751 / IEC 62353 and EN 60601 2nd and 3rd edition
  • Electrical equipment according to DIN VDE 0701-0702
    Routine tests according to EN 61010, EN 60950, EN 60335

Please note: Special items / stock sales are in their original packaging and unused. All special items are guaranteed for 1 year. Subject to prior sale. The configuration of a special item cannot be changed. The calibration of a special item may no longer be up to date. If you would like an up-to-date calibration, please contact our experts.

Give us a call, we will be happy to consult you personally:

+43 720 51 89 49

About the Manufacturer

Gossen Metrawatt
Safety through competence. With over 100 years of experience, Gossen Metrawatt offers you unique products for measurement and testing technology as well as industrial metrology. The products stand for quality, reliability, safety and progressiveness, but also for dynamic and ergonomic design, high ease of use and unique innovative spirit.
